Rubber Seals Suction Cover for CNC Machine Vacuum Cups
Suction plates are the main parts of the CNC vacuum blocks, they are used for sealing and get a vacuum area for holding workpiece. But some time because of programming errors or operation problems, it is easy to cut the rubber pads.
Don’t throw away your old CNC vacuum block! Just replace the new rubber suction covers, some time the old CNC vacuum cups become NEW.
As there are 3 common use vacuum suction cups for CNC machining centers, so accordingly there are 3 kinds cnc rubber seals for replacement.

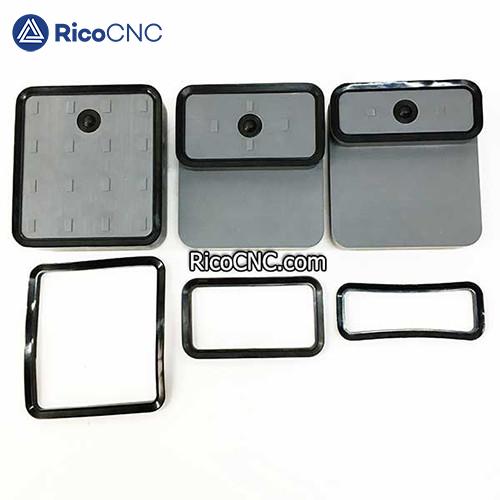

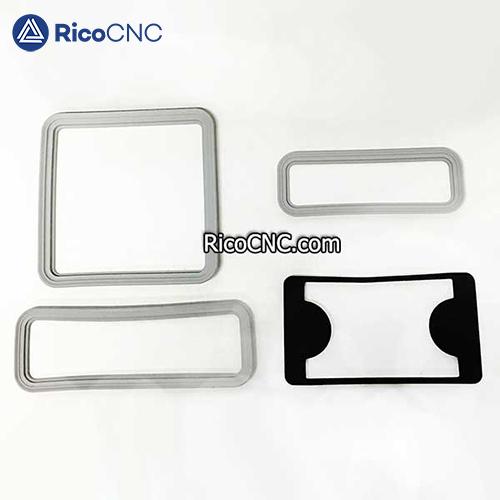

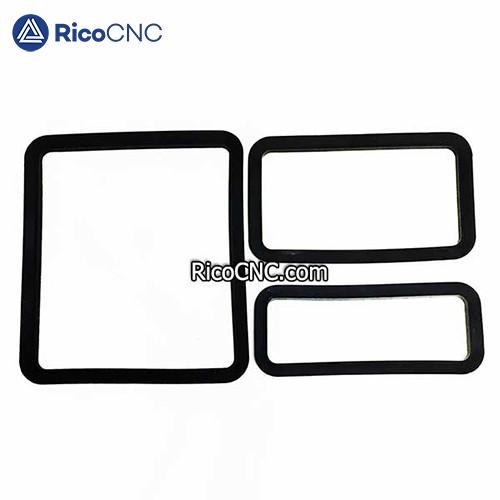

1. Rubber gasket seal rings for Biesse suction cup
This gasket ring is fixed around the cups and used for sealing. It is made of rubber and applied with today’s Biesse CNC machining center. There are 3 kinds of different size Biesse vacuum gasket are available in 3 different dimensions:
a. full size: 132x146mm (Biesse part no: FNAW550129),
b. half size: 132x74mm (Biesse part no: FNAW550128)
c. 1/3 Size: 132x54mm (Biesse part no: FNAW550127)
For the old Biesse machines, it uses sealing strips to seal. The material of the gasket seal is sponge. If it is damaged, you can buy a long one and cut according to your request.

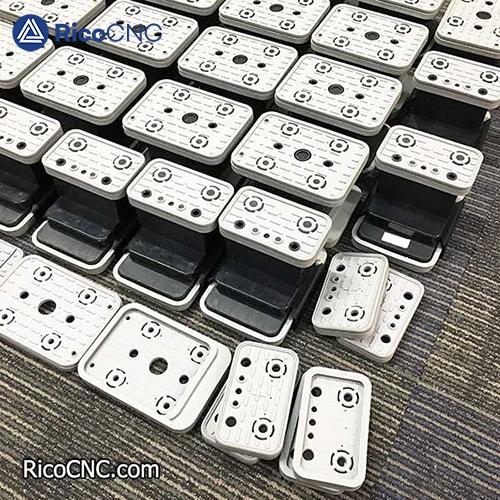

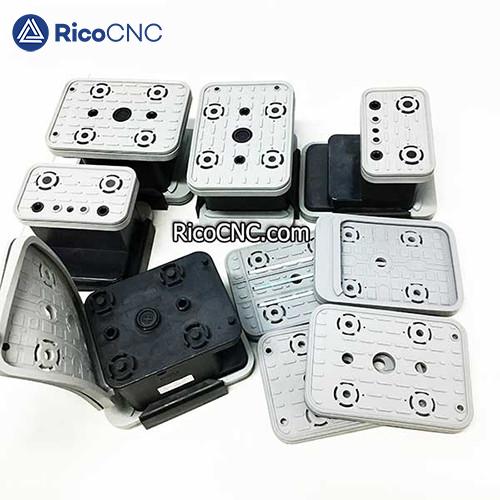

2. Replacement rubber cover for Homag Weeke CNC vacuum block
rubber covers are used for the suction cups manufactured by Schmalz. Vacuum
clamping systems from Schmalz are used on CNC machining centers made
by many different manufacturers, such as HOMAG, Weeke, IMA, Felder,
Holz-Her, Busselato, Reichenbacher, Masterwood, etc.

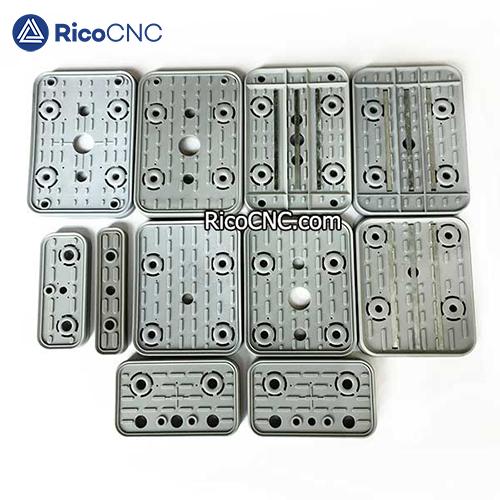

For this type of CNC vacuum modules, we usually just need to replace the upper or lower rubber suction plate if the pods are damaged. The top and bottom suction pcovers can be easily and quickly installed without tools. There are many different sizes for the replacement suction pads of vacuum blocks.

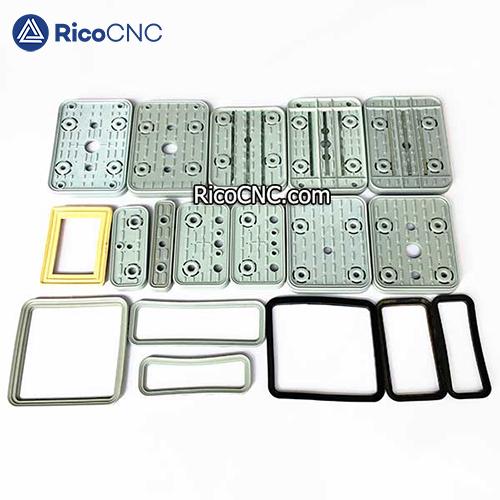

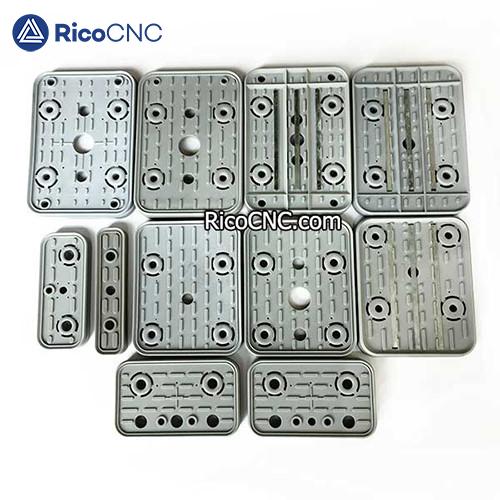

Here we list some sizes of commonly used suction pods skin:
Schmalz Part No.
140x115x17mm bottom VCBL-K1
140x115x17mm bottom VCBL-K2
160x115x17mm top with step
160x115x17mm bottom with step

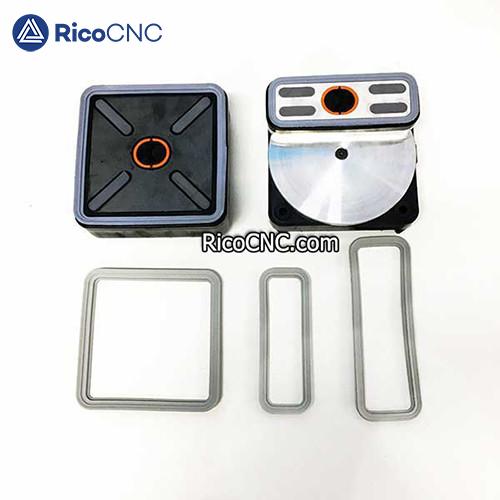

3. Soft rubber seals for SCM vacuum cups
top gasket is used on SCM Morbidelli and Greda Sirio vacuum pods in
the woodworking machining center.
There are 3 different upper
rubber sealing sizes:
a. 144x144mm (0391320413C) fit for 145 x 145mm SCM vacum pods use.
b. 143x52mm (0390320645C), fit for 145 x 45mm SCM vacuum blcok use.
c. 176x61mm, fit for 180 x 65mm SCM suction pods use.
These replaceable parts are cheap. We recommend that you keep some rubbers in your stock. Do not shut down production and wait for spare parts to arrive. If you are looking for vacuum clamping accessories for your CNC, welcome contact RicoCNC.
RicoCNC supplies CNC vacuum pods and replacements
for all major types of CNC router center machines. Such as Anderson,
Biesse, Busellato, Bulleri, CMS, CR Onsrud, Komo Machinery, IMA,
Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, SCM, HolzHer,
Flexicam, Multicam, Masterwood, Homag, KDT, Nanxing, Excitech, etc. Here
you can find all spare parts for your used or damaged vacuum blocks.
