CNC Suction Cups Vacuum Pods for CNC machining center
This CNC vacuum system is vacuum pods for CNC router woodworking machines. The CNC vacuum pads is very suited for handling of workpieces in wood processing, such as furniture parts, floor boards, MDF, and particle board etc. CNC vacuum suction block are widely used in the wood industry for vacuum clamp pods during machining, sanding etc with P.T.P. CNC machining center with vacuum bars. You are easily to find them on German and Italian woodworking machinery like Biesse, Homag/Weeke, SCM/Morbidelli, Felder, Format 4, MasterCAM, IMA, HOLZ HER, Masterwood and Greda Sirio etc.

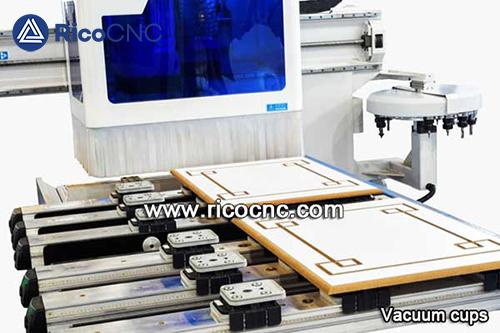

vacuum cups are pre-fixed onto the bars supports by vacuum in
order to prevent them from moving during handling of the work-piece. It
is mounted on the console to clamp the workpiece by vacuum and be moved
to adjust their positions depending on the workpiece. The suction block
are suitable for processing small and high precision parts and can be
machined on the side. They are widely used for solid wood processing.
RicoCNC supplies a range of vacuum cups for all major types of CNC Router machining centers. There are 3 common CNC suction cups for CNC router center in the woodworking machinery market.
1, Biesse Vacuum Cups

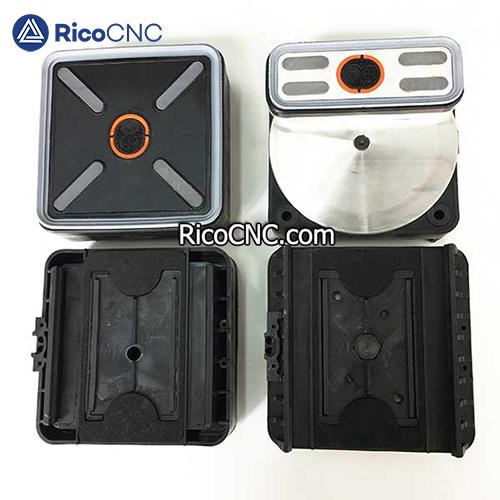

ATS is abbreviation for 'Advanced Table Setting'. These vacuum pods are manually positioned. There is a white nylon support locating ring on the base of the pods. The base bodies of the vacuum pods are inserted into a holding fixture on a pod and rail table. The base body and holding fixture have a grating that is divided into 15° steps. Thus, it is possible to position the vacuum block in different angles on the pod and rail table. These CNC vacuum pads are easy to find in Biesse rover series CNC machine. There are three different heights: 29mm, 48mm and 74mm vacuum pads for Biesse.
Here are the sizes for Biesse CNC pods:
29mm height vacuum suction cup:
Full-size suction pod: 132*146*29mm
Half-size suction pod (1/2 Size): 132*75*29mm
1/3 Size pod: 132*54*29mm
48mm height vacuum cup:
Full vacuum cup: 132*146*48mm
Half size cup (1/2 Size): 132*75*48mm
1/3 Size cup: 132*54*48mm
74mm Biesse CNC vacuum block:
Full suction block: 132*146*74mm
Half suction block (1/2 Size): 132*75*74mm
1/3 size suction block: 132*54*74mm
These CNC suction pads include top black suction valves, white locating rings and rubber gaskets.
2, Homag and Weeke CNC Suction Pads

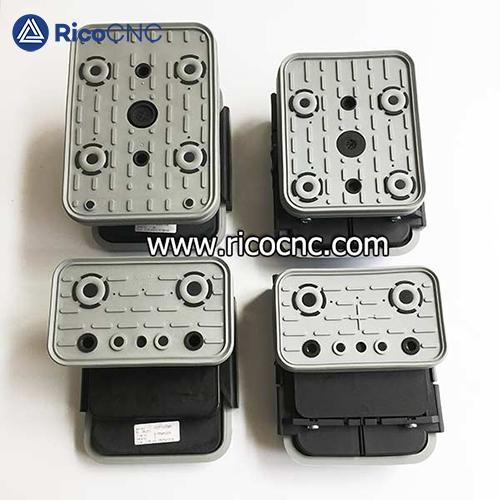

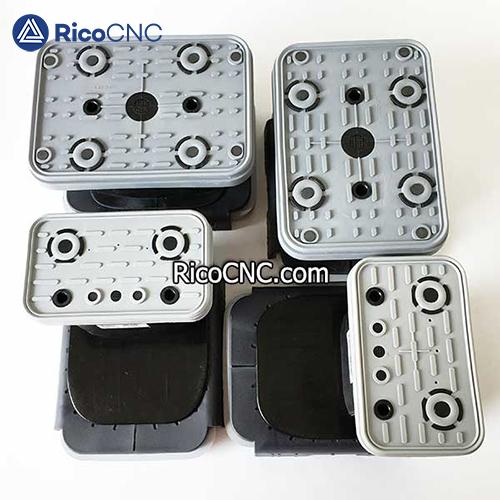

These suction pads are manufactured by Schmalz. Schmalz is one of the world's leading suppliers in vacuum technology. It can provide a wide of product range includes a variety of suction block with various shapes, sizes and materials. The suction pods for Homag and Weeke adopt a dual circuit system and the installation height is 100mm. They can be used on the normal K-table as well as on the AP-table (automatic positioning of the vacuum blocks).
The vacuum block for Homag Weeke are made in different sizes:
Schmalz part No.
VCBL-K1 125x75x50 Q
VCBL-K1 120x50x50 Q
VCBL-K2 120x50x100 Q
VCBL-K2 125x75 x100 Q
VCBL-K2 160x115 x100 Q
VCBL-K2 160x115 x100
VCBL-K2 140x115x100 AS
VCBL-K2 125x75x100 Q
VCBL-K2 125x75x100 Q
VCBL-K2 125x75x100 L
VCBL-K2 120x50x100 L
VCBL-K2 130x30x100 Q
VCBL-K2 130x30x100 L
VCBL-K2 120x50x100 D-360 with 360° rotatable top
VCBL-K2 125x75x100 D-360
with 360° rotatable top
Top and bottom rubber pads for this vacuum block can be easy to remove and replace.
3, SCM Morbidelli CNC Suction Cups
These vacuum cups are easily found in SCM/Morbidelli and Greda Sirio CNC woodworking centers.
SCM vacuum block are available in two different sizes:

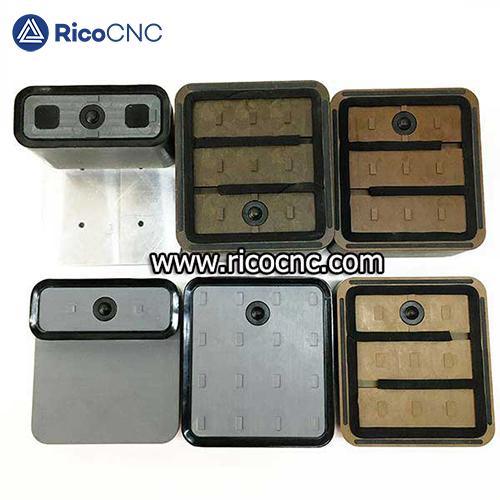

SCM Morbidelli CNC suction block: 50mm height 145 x 145mm
SCM Morbidelli CNC suction pods(rotatable): 50mm height 145 x 55mm
The top rubber seal gaskets and bottom base gasket of these suction blocks are replacement parts.
RicoCNC focus on providing high quality and factory direct CNC vacuum block and replacement rubber pads, also can supply a comprehensive range of CNC woodworking machine spare parts. welcome to your inquiry.
