Homag 4-011-11-0077 Rubber Suction Plates 140x115mm for CNC Vacuum Blocks

Homag 4-011-11-0077 Rubber Suction Plates 140x115mm for CNC Vacuum Blocks

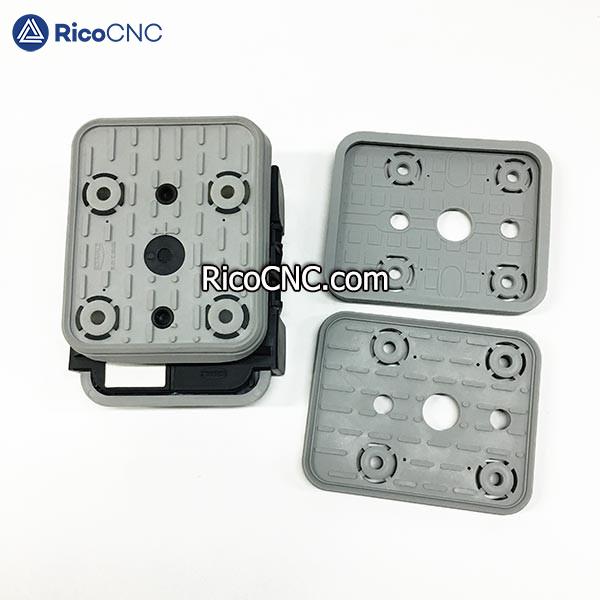

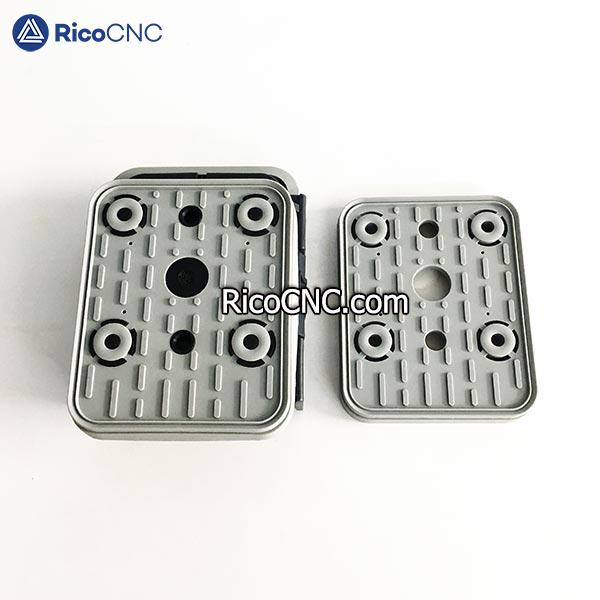

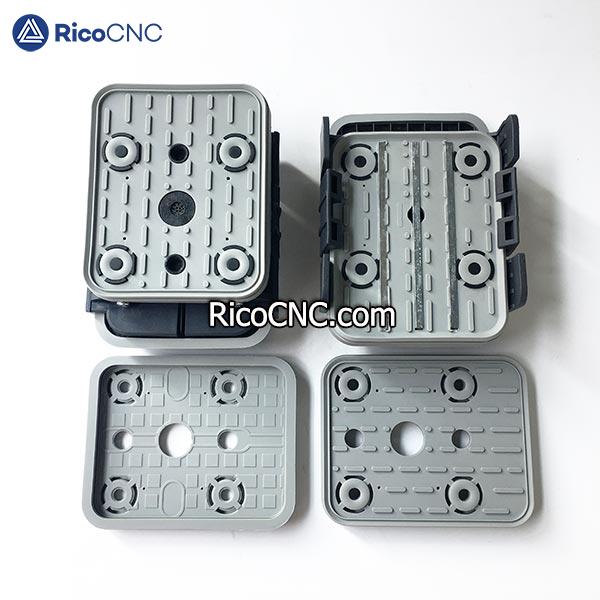

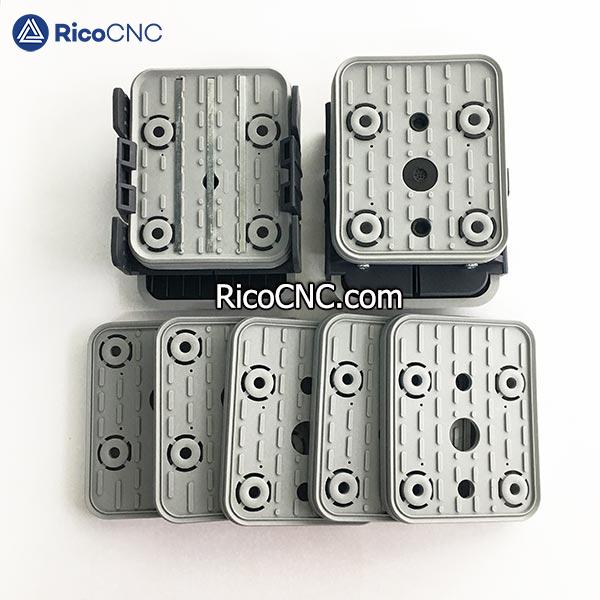

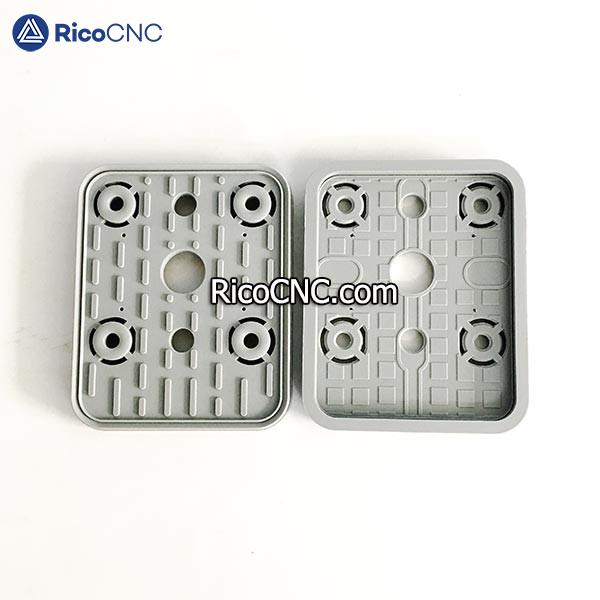

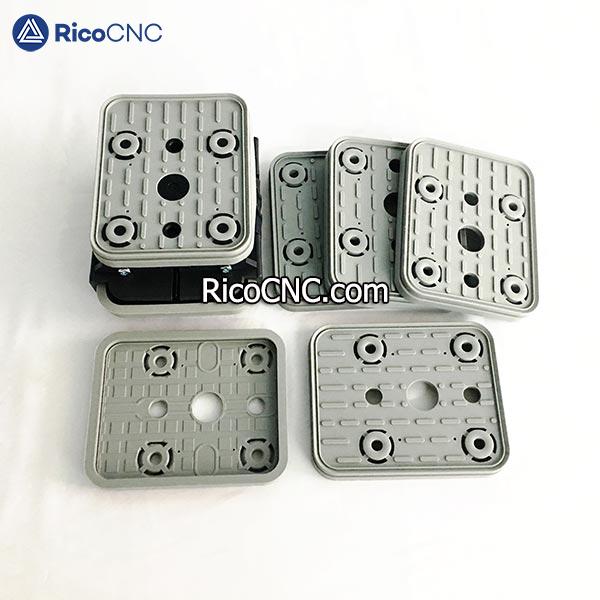

This rubber is suction plate with Homag/Weeke part No.: 4-011-11-0077 (4011110077), Schmalz No.: 10.01.12.00488. It is the replacement rubber pads for VCBL-K1 and VCBL-K2 vacuum block 140 x 115mm. It is the top rubber seal for 4-011-11-0367, 10.01.12.00210, 10.01.12.00445, 4-011-11-0072, 10.01.12.02363, 10.01.12.02195, 10.01.12.00446, 10.01.12.02116, 10.01.12.00369, 10.01.12.02481, 10.01.12.02136, 10.01.12.03673, 10.01.12.01553, 10.01.12.00626, 10.01.12.01472 Schmalz vacuum suction blocks.

VCSP-O 140x115x16.5 top suction plate r size:
Dimensions (L x W): 140 x 115 mm
Height H: 16.5 mm

The 140x115x17mm replacement rubber seal is the spare part for cnc vacuum blocks, used with vacuum clamping systems.

Alternative OEM numbers:
Homag: 4-011-11-0077 (4011110077)
Weeke: 4-011-11-0077 (4011110077)
Busellato: 37400040 000
HolzHer: 2794144
IMA Klessmann: 092 739
Masterwood: VN 000101
Andi Anderson: N/A
CMS: 38603701
Reichenbacher: N/A
SCM / Morbidelli: 0790340006a
Schmalz part no.: 10.01.12.00488

140 x 115 mm rubber suction pad for VCBL-K1 and VCBL-K2 are used for hold-down and clamping on PTP CNC woodworking machining center equipment. Such as Homag/Weeke, Felder, Busellato, Format 4, MasterCAM, IMA, HOLZ HER, Andi Anderson, Masterwood Project 355, CMS, Reichenbacher, SCM / Morbidelli, etc.

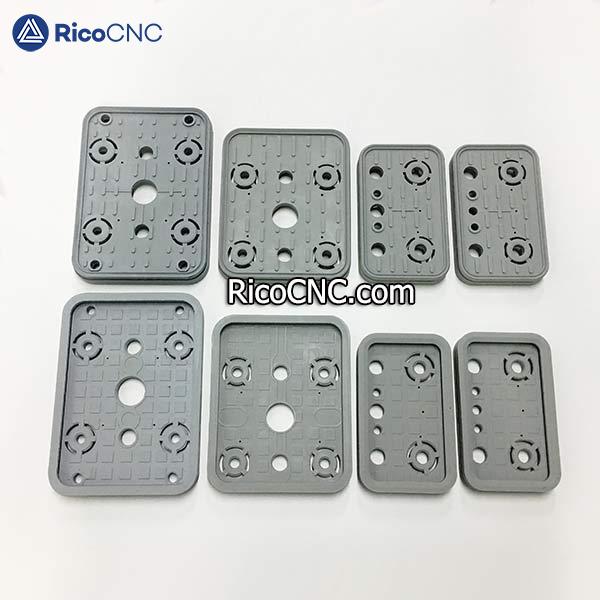

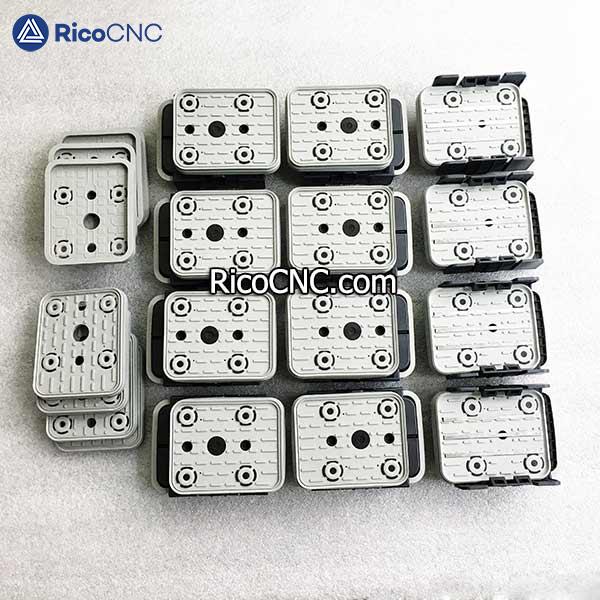

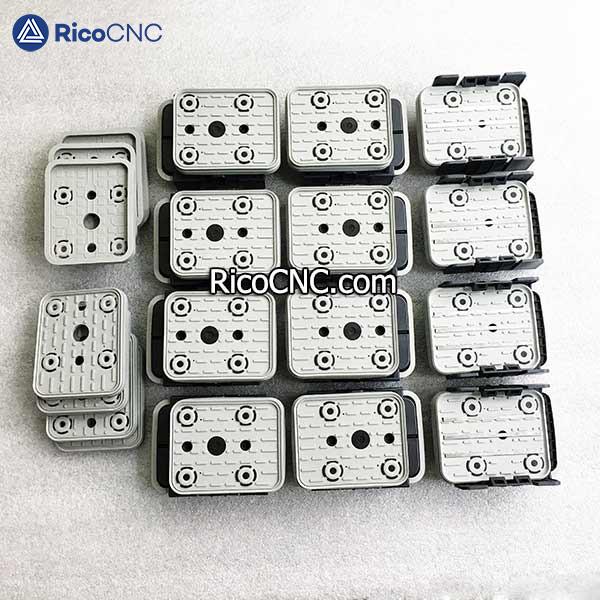

RicoCNC supplies a range of replacement rubbers for vacuum blocks, it is a reliable woodworking resource, welcome your inquiry.
