Homag 4035010458 4-035-01-0458 Short Stoke cylinder D=20 HUB=10

Homag 4035010458 4-035-01-0458 Short Stoke cylinder D=20 HUB=10

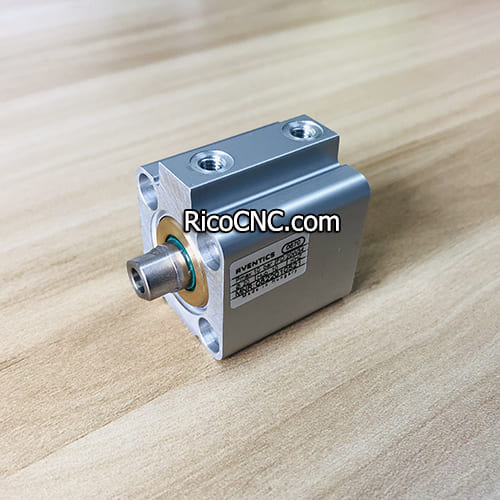

This is AVENTICS 0822010521 short-stroke cylinder, Series KHZ (KHZ-DA-020-0010-O), Diameter 20 mm, Stroke 10 mm, Thread Size M5. It can be used on Homag woodworking machine. Homag part number is 4035010458 or 4-035-01-0458.

Specifications of Homag 4035010458 cylinder:

Manufacturer: AVENTICS

Part number: 0822010521

Homag part number: 4035010458 4-035-01-0458.

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1

Pneumatic port: M5

Stroke (mm): 10

Acting principle: Double Acting

Piston diameter: 20 mm

Piston rod thread: M5

A range of AVENTICS air cylinder can be supplied here, such as

4035010100

4035010035

4035010413

4035010206

RicoCNC can offer a range of CNC & woodworking machine parts for Biesse, Homag, SCM, Anderson, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, and other machine brands.

If you are looking for reliable  woodworking machine parts supplier, welcome to contact us.
