• Homag 4035010446 cylinder
• AVENTICS 0822332202 mini cylinder
• Round cylinder ISO6432
• MINI cylinder D=16 HUB= 25 M5
• 0822332202
• 4-035-01-0446
• Cylinder for Homag machines
• Homag woodworking machine parts

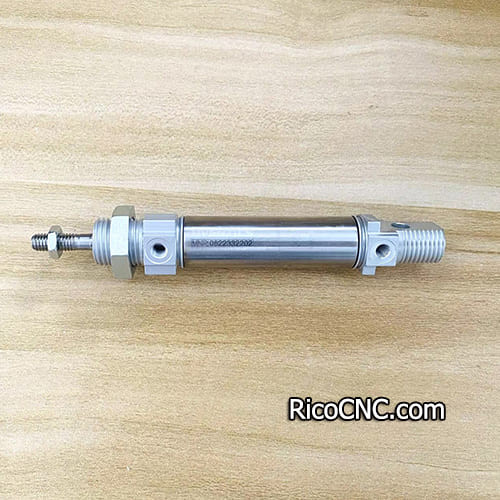

This is Emerson Aventics Rexroth 0822332202 ISO 6432 round cylinders, series MNI (MNI-DA-16-0025-U-31-01-1-00-000-00), D=16 HUB= 25 M5. It can be used on Homag woodworking machine. Homag part number is 4035010446 or 4-035-01-0446.
A list of Aventics cylinders for Homag woodworking machines can be supplied:
Piston Ø | 10 mm | 12 mm | 16 mm | 20 mm | 25 mm |
Piston rod thread | M4 | M6 | M6 | M8 | M10x1,25 |
Ports | M5 | M5 | M5 | G 1/8 | G 1/8 |
Piston rod Ø | 4 mm | 6 mm | 6 mm | 8 mm | 10 mm |
Cylinder outer thread | M12x1,25 | M16x1,5 | M16x1,5 | M22x1,5 | M22x1,5 |
Stroke 10 | 0822330201 | 0822331201 | 0822332201 | 0822333201 | 0822334201 |
25 | 0822330202 | 0822331202 | 0822332202 | 0822333202 | 0822334202 |
50 | 0822330203 | 0822331203 | 0822332203 | 0822333203 | 0822334203 |
80 | 0822330204 | 0822331204 | 0822332204 | 0822333204 | 0822334204 |
100 | 0822330205 | 0822331205 | 0822332205 | 0822333205 | 0822334205 |
125 | 0822330215 | 0822331206 | 0822332206 | 0822333206 | 0822334206 |
160 | 0822330209 | 0822331207 | 0822332207 | 0822333207 | 0822334207 |
200 | 0822330235 | 0822331218 | 0822332208 | 0822333208 | 0822334208 |
250 | 0822330219 | 0822331219 | 0822332209 | 0822333209 | 0822334209 |
320 | - | 0822331223 | 0822332210 | 0822333210 | 0822334210 |
400 | - | 0822331217 | 0822332219 | 0822333214 | 0822334211 |
500 | - | 0822331233 | 0822332220 | 0822333220 | 0822334212 |
RicoCNC can offer a range of CNC & woodworking machine parts for Biesse, Homag, SCM, Anderson, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, and other machine brands.
If you are looking for reliable woodworking machine parts supplier, welcome to contact us.
