Homag 4-035-01-0504 4035010504 AVENTICS 0822010821 Cylinder

Homag 4-035-01-0504 4035010504 AVENTICS 0822010821 Cylinder

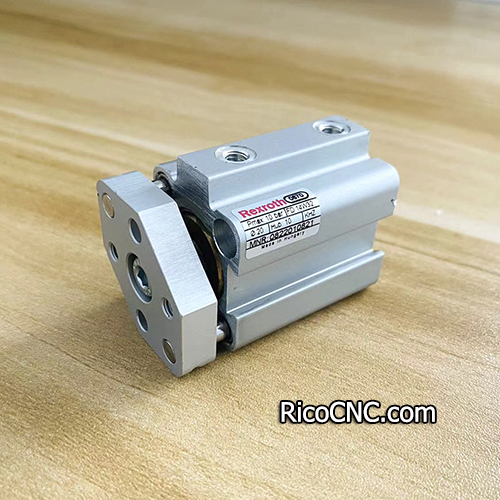

This is AVENTICS 0822010821 KHZ-DA-020-0010-M-NR cylinder. It is KHZ series short stoke cylinder, D= 20 HUB= 10. It can be used on Homag woodworking machine. Homag part number is 4-035-01-0504  or 4035010504.

Specification of Homag 4035010504 cylinder:

Manufacturer: AVENTICS

Model: 0822010821

Homag part number: 4-035-01-0504/4035010504

Piston diameter: 20 mm

Stroke (mm):10

Principle of operation: Double-acting

Damping: Elastic damping

Magnetic piston: Piston with magnet

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1

Pneumatic port: M5

RicoCNC supplies a wide selection of spare parts for Homag Brandt edgebanding machine, including Homag edgebander track pads, Homag pressure wheels, Homag edgebander glue pot, homag cloth buffing wheels, Homag shock absorber， Homag trimming motor, Homag pre-milling motor, Homag polishing motor, edge bander premilling cutter, air cylinder, solenoid valve, infeed roller, etc.

Welcome to your inquiry!
