Homag 4035010387 4-035-01-0387 AVENTICS 0822010562 Piston Rod Cylinder

Homag 4035010387 4-035-01-0387 AVENTICS 0822010562 Piston Rod Cylinder

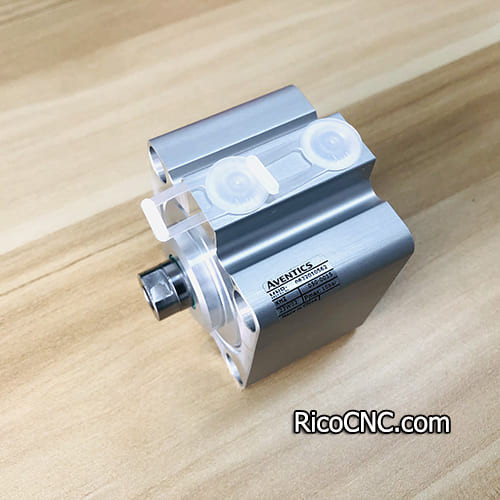

This is EMERSON AVENTICS 15 mm Pneumatic Piston Rod Cylinder, 0822010562 KHZ Series(KHZ-DA-050-0015-O). It is short-stoke cylinder KHZ D= 50 HUB= 15. This cylinder can be used on Homag woodworking machine. Homag part number is 4035010387 or 4-035-01-0387.

The AVENTICS Series KHZ is a non-standard short-stroke cylinder ideal for tight installation spaces and ensure easy,safe integration in machinery.

Specification of Homag 4035010387 cylinder:

Manufacturer: AVENTICS

Part number: 0822010562

Homag part number: 4035010387 4-035-01-0387

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 0.6

Pneumatic port: G 1/8

Stroke (mm): 15

Acting principle: Double Acting

Piston diameter: 50 mm

Piston rod thread: M8
