Homag 4-035-01-0563 4035010563 AVENTICS 0822123004 Air Cylinder

Homag 4-035-01-0563 4035010563 AVENTICS 0822123004 Air Cylinder

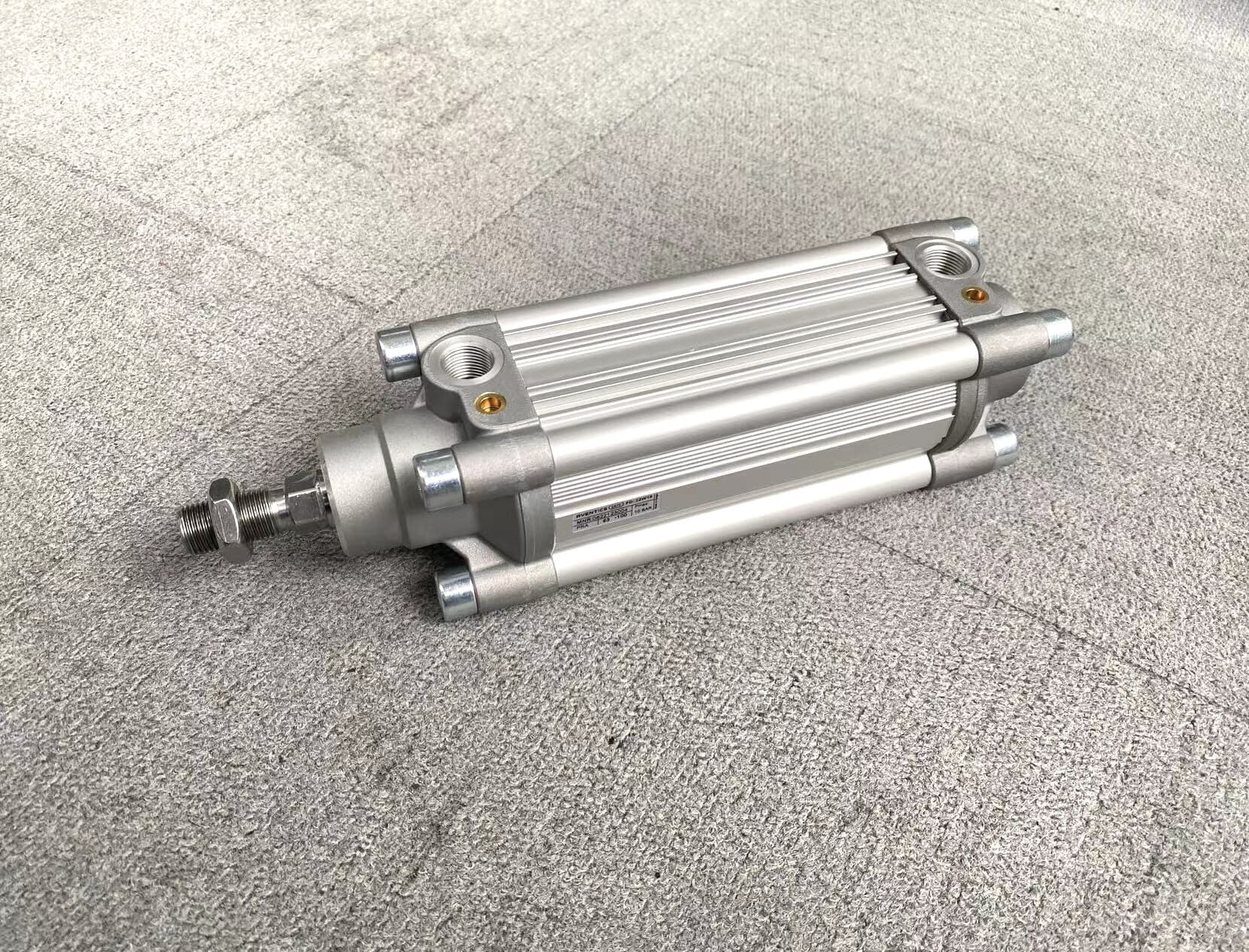

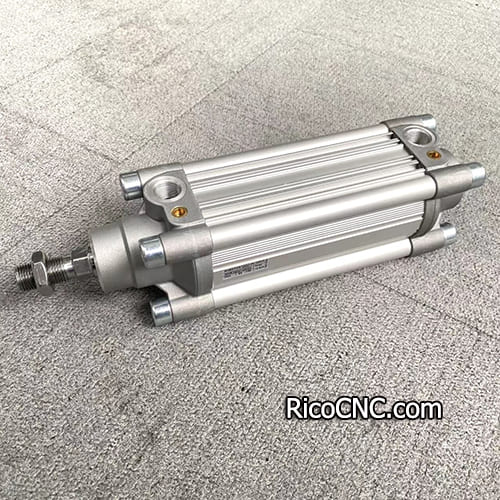

This is AVENTICS 0822123004 profile air cylinder ISO 15552, PRA series (PRA-DA-063-0100-0-2-2-1-1-1-BAS), D=63 HUB=100 G3/8. This pneumatic cylinder can be used on Homag woodworking machine. Homag part number is 4-035-01-0563 or 4035010563.

Specification of Homag 4035010563 cylinder:

Manufacturer:  AVENTICS

Model: 0822123004

Homag part number: 4-035-01-0563/4035010563

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -20

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1.5

Pneumatic port: G 3/8

Stroke (mm): 100

Acting principle: Double Acting

Piston diameter: 63 mm

Piston rod thread: 5 M16x1

RicoCNC can offer a range of CNC & woodworking machine parts for Biesse, Homag, SCM, Anderson, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, and other machine brands.

If you are looking for reliable industrial woodworking machine parts supplier, welcome to contact us.
