Homag 4-035-01-0562 4035010562 Aventics 0822123003 Pneumatic Cylinder

Homag 4-035-01-0562 4035010562 Aventics 0822123003 Pneumatic Cylinder

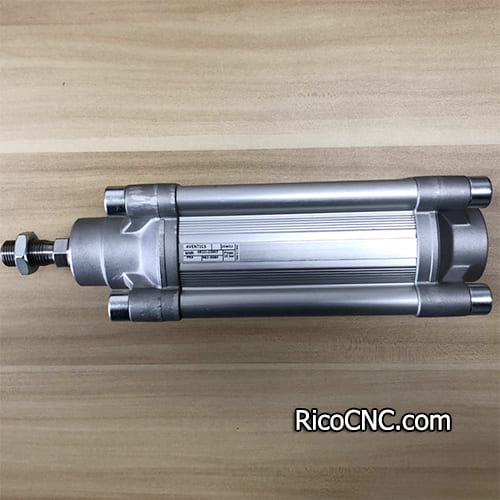

This is AVENTICS 0822123003 profile cylinder ISO 15552, PRA series (PRA-DA-063-0080-0-2-2-1-1-1-BAS).It can be used on Homag woodworking machine. Homag part number is 4-035-01-0562 or 4035010562.

Specifications of AVENTICS 0822123003 profile cylinder:

Manufacturer:  AVENTICS

Model: 0822123003

Homag part number: 4-035-01-0562 4035010562

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -20

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1.5

Pneumatic port: G 3/8

Stroke (mm): 80

Acting principle: Double Acting

Piston diameter: 63 mm

Piston rod thread: 5

M16x1
