4035010565 4-035-01-0565 Homag Aventics 0822123007 Profile Cylinder

4035010565 4-035-01-0565 Homag Aventics 0822123007 Profile Cylinder

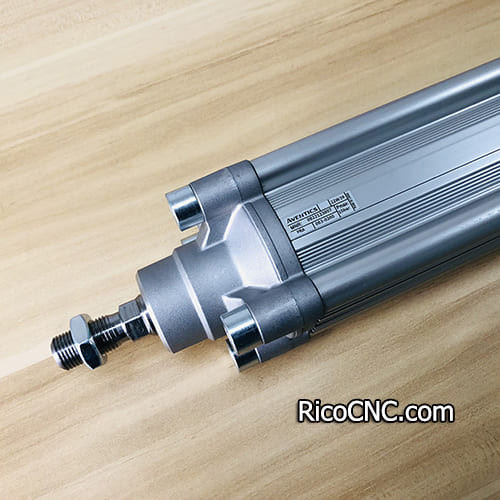

This is Aventics 0822123007 Profile cylinder ISO 15552, PRA series PRA-DA-063-0200-0-2-2-1-1-1-BAS, D=63 HUB=200 G3/8. It can be used on Homag woodworking machine. Homag part number is 4-035-01-0565 or 4035010565.

The AVENTICS Series PRA (ISO 15552) cylinders have a compact design profile with integrated sensor slots. The Series PRA (ISO 15552) cylinders can be used for all

industries. This includes general automation technology, machine and systems construction, as well as specific industry applications.

Specification of Homag 4-035-01-0565 cylinder:

Manufacturer: AVENTICS

Part number: 0822123007

Homag part number: 4035010565/4-035-01-0565

Standards: ISO 15552

Piston: Ø63 mm

Stroke: 200 mm

Ports: G 3/8

Functional principle: Double-acting

Cushioning: Pneumatic adjustable cushioning

Magnetic piston: Piston with magnet

Environmental requirements: Industry standard ATEX optional

Piston rod thread – type: External thread

Piston rod thread: M16x1,5

Piston rod: single

Scraper  Standard Industry Scraper

Pressure for determining piston forces: 6,3 bar

Retracting piston force: 1765 N

Extracting piston force: 1960 N

Min. ambient temperature: -20 °C

Max. ambient temperature: 80 °C

Min. working pressure: 1.5 bar

Max. working pressure: 10 bar

Cushioning length: 16.5 mm

Cushioning energy: 27 J

Weight 0 mm stroke: 1.42 kg

Weight +10 mm stroke: 0.054 kg

Stroke max.  2500 mm

Medium  Compressed air

Min. medium temperature: -20 °C

Max. medium temperature: 80 °C

Max. particle size: 50 µm

Min. oil content of compressed air: 0 mg/m³

Max. oil content of compressed air: 5 mg/m³

RicoCNC can supply a wide selection of Homag spare parts, including spare parts for woodworking machines, including Homag CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts.
