Homag 4035010635 4-035-01-0635 AVENTICS 0822010634 Short stroke Cylinders

Homag 4035010635 4-035-01-0635 AVENTICS 0822010634 Short stroke Cylinders

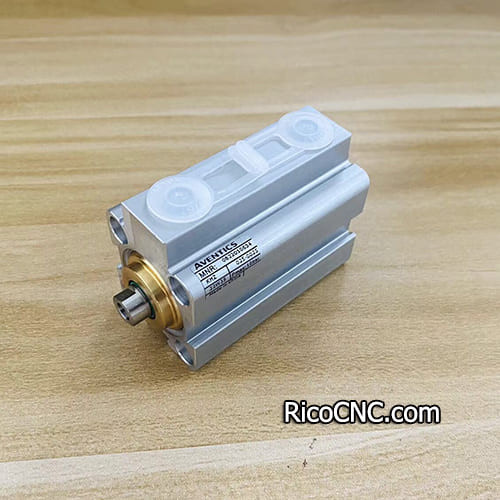

This is AVENTICS 0822010634 short stroke cylinder, series KHZ (KHZ-DA-025-0025-M),

D= 25 HUB= 25. It can be used on Homag woodworking machine. Homag part number is 4035020240 or 4-035-02-0240.

Specification of Homag 4035010635 cylinder:

Manufacturer: AVENTICS

Part number: 4035020240

Homag part number: 4035010635/4-035-01-0635

Piston: Ø 25 mm

Stroke: 25 mm

Ports: G 1/8

Functional principle: Double-acting

Cushioning:  Elastic cushioning

Magnetic piston:  Piston with magnet

Environmental requirements Industry standard

Piston rod thread - type Internal thread

Piston rod thread:  M5

Piston rod single

Scraper Standard Industry Scraper

Pressure for determining piston forces 6,3 bar

Retracting piston force 260 N

Extracting piston force 309 N

Min. ambient temperature -25 °C

Max. ambient temperature 80 °C

Min. working pressure 1 bar

Max. working pressure 10 bar

Impact energy 0.1 J

Weight 0 mm stroke 0.178 kg

Weight +10 mm stroke 0.03 kg

Medium Compressed air

Min. medium temperature -25 °C

Max. medium temperature 80 °C

Max. particle size 50 µm

Min. oil content of compressed air 0 mg/m³

Max. oil content of compressed air 5 mg/m³

 RicoCNC can offer a range of spare parts for Homag machines, including Homag CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts.

If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
