Homag 4035010726 4-035-01-0726 AVENTICS 0822010555 Pneumatic Cylinder

Homag 4035010726 4-035-01-0726 AVENTICS 0822010555 Pneumatic Cylinder

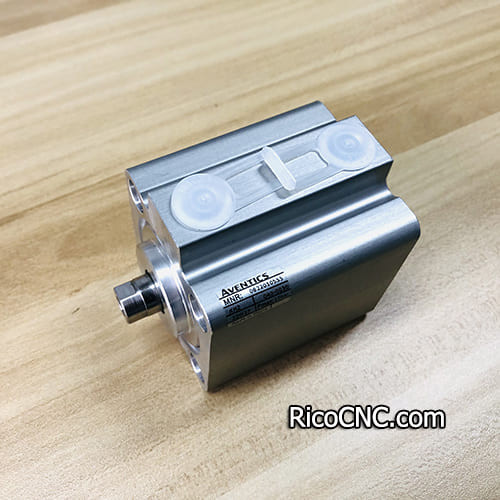

This is AVENTICS 0822010555 short stroke cylinder, series KHZ, KHZ-DA-040-0030-O, D= 40 HUB= 30.It can be used on Homag woodworking machine. Homag part number is 4035010726 or 4035010726.

Specification of Homag 4-035-01-0726 cylinder:

Manufacturer:  AVENTICS

Model: 0822010555

Homag part number: 4-035-02-0240 4035020240

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 0.6

Pneumatic port: G 1/8

Stroke (mm): 30

Acting principle: Double Acting

Piston diameter: 40 mm

Piston rod thread: M6

RicoCNC supplies a wide selection of spare parts for Homag Brandt edgebanding machine, including Homag edgebander track pads, Homag pressure wheels, Homag edgebander glue pot, homag cloth buffing wheels, Homag shock absorber， Homag trimming motor, Homag pre-milling motor, Homag polishing motor, edge bander premilling cutter, air cylinder, solenoid valve, infeed roller, etc.
