4035010636 4-035-01-0636 Homag AVENTICS 0822010531 Pneumatic Cylinder

4035010636 4-035-01-0636 Homag AVENTICS 0822010531 Pneumatic Cylinder

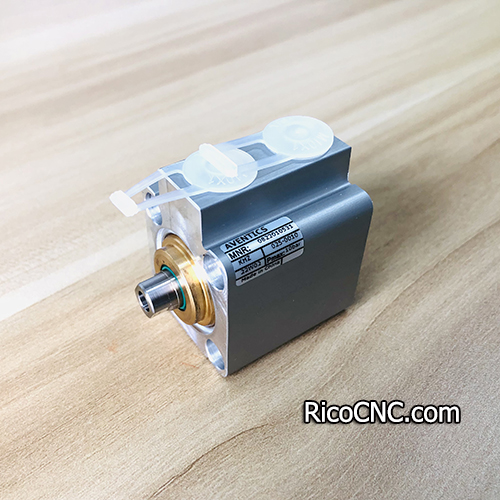

This is Aventics 0822010531 Short-Stroke pneumatic cylinder, Series KHZ, KHZ-DA-025-0010-O, D=25 HUB=10. It can be used on Homag woodworking machine. Homag part number is 4035010636 or 4-035-01-0636.

Specifications of Homag 4-035-01-0636 cylinder:

Manufacturer: AVENTICS

Part number: 0822010531

Homag part number: 4035010636/4-035-01-0636

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1

Pneumatic port: G 1/8

Stroke (mm): 10

Acting principle: Double Acting

Piston diameter: 25 mm

Piston rod thread: M5
