Homag 4035010247 4-035-01-0247 AVENTICS 0822010541 Cylinder

Homag 4035010247 4-035-01-0247 AVENTICS 0822010541 Cylinder

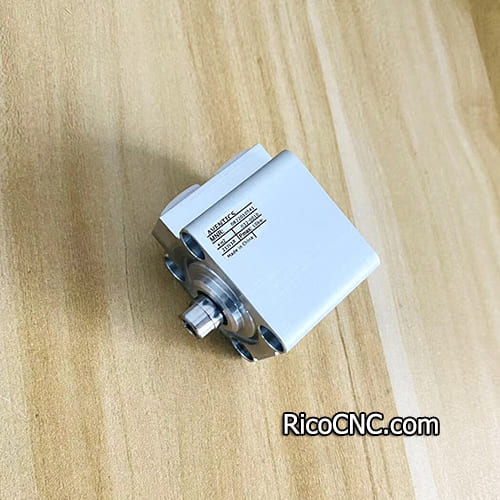

This is EMERSON AVENTICS 0822010541 pneumatic compact cylinder, 32mm bore, 10mm stroke KHZ Series (KHZ-DA-032-0010-O). It is double acting, Short-stoke cylinder, D= 32 HUB= 10, G1/8. It can be used on Homag woodworking machine. Homag part number is 4035010247 or 4-035-01-0247.

Specifications of Homag 4-035-01-0247 cylinder:

Manufacturer: AVENTICS

Part number: 0822010541

Homag part number: 4035010247 4-035-01-0247.

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 0.6

Pneumatic port: G 1/8

Stroke (mm): 10

Acting principle: Double Acting

Piston diameter: 32 mm

Piston rod thread: M6

RicoCNC can offer a range of Homag woodworking machine accessories.

If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
