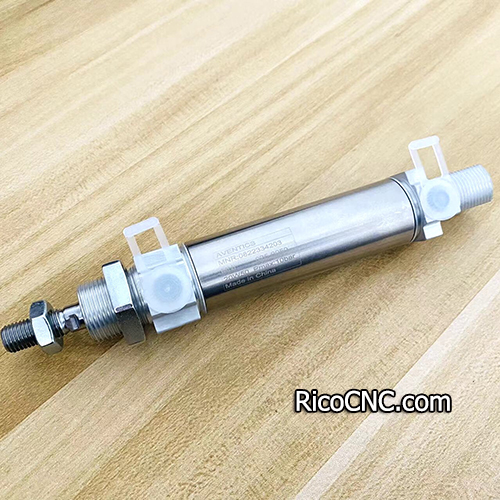

This is 0822334203 Aventics pneumatic cylinder MNI-DA-25-0050-U-31-01-1-00-000-00.It can be used on Homag woodworking machine. Homag part number is 4035010186 or 4-035-01-0186.

It is mini metric cylinder, ISO 6432, Double Acting, 25mm Bore, 50mm Stroke, Elastic Bumpers, Magnetic Piston, Single Rod, Polyurethane Seals, Standard Rod Length

Specifications of Homag 4-035-01-0186 cylinder:

Manufacturer: AVENTICS

Part number: 0822334203

Homag part number: 4035010186 4-035-01-0186.

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1

Pneumatic port: G 1/8

Stroke (mm): 50

Acting principle: Double Acting

Piston diameter: 25 mm

Piston rod thread: 25 M10x1

RicoCNC carries a wide range of Homag CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts.
