Homag 4-035-01-1281 4035011281 AVENTICS 0822393205 Compact Cylinder

Homag 4-035-01-1281 4035011281 AVENTICS 0822393205 Compact Cylinder

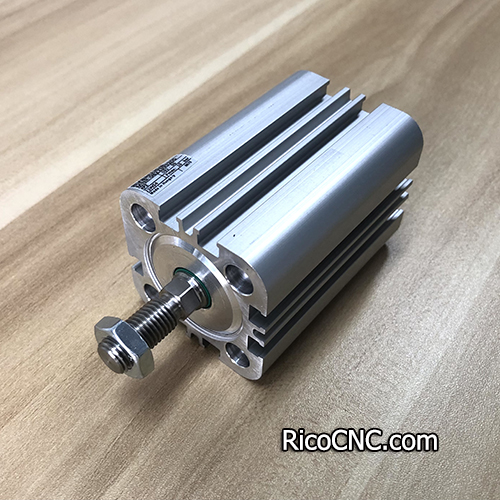

This is AVENTICS 0822393205 compact pneumatic cylinder KPZ KPZ-DA-032-0030-004122411000000-B, D= 32 HUB= 30 G1/8. It can be used on Homag edgebanding machine. Homag part number is 4035011281 or 4-035-01-1281.

Specifications of Homag 4-035-01-1281 cylinder:

Manufacturer: AVENTICS

Part number: 0822393205

Homag part number: 4035011281, 4-035-01-1281.

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -20

Working Pressure Max (bar): 10

Working Pressure Min (bar): 0.6

Pneumatic port: G 1/8

Stroke (mm): 30

Acting principle: Double Acting

Piston diameter: 32 mm

Piston rod thread: 25 M10x1

RicoCNC supplies a wide selection of spare parts for Homag Brandt edgebanding machine, including Homag edgebander track pads, Homag pressure wheels, Homag edgebander glue pot, homag cloth buffing wheels, Homag shock absorber， Homag trimming motor, Homag pre-milling motor, Homag polishing motor, edge bander premilling cutter, air cylinder, solenoid valve, infeed roller, etc.
