HOMAG 4035012159 4-035-01-2159 AVENTICS 0822010678 Cylinder

HOMAG 4035012159 4-035-01-2159 AVENTICS 0822010678 Cylinder

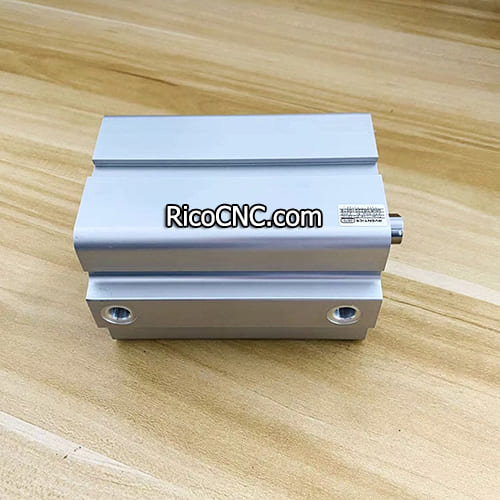

This is Aventics 0822010678 Short-Stroke Cylinder, Series KHZ, KHZ-DA-063-0080-M.

It can be used on Homag woodworking machine. Homag part number is 4035012159 or 4-035-01-2159

Specification of Homag 4035012159 cylinder:

Manufacturer:  AVENTICS

Model: 0822010678

Homag part number: 4035012159/4-035-01-2159

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 0.6

Pneumatic port: G 1/8

Stroke (mm): 80

Acting principle: Double Acting

Piston diameter: 63 mm

Piston rod thread: M8

RicoCNC can offer a range of spare parts for Homag machines, including Homag CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts.

If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!

Welcome to your inquiry!
