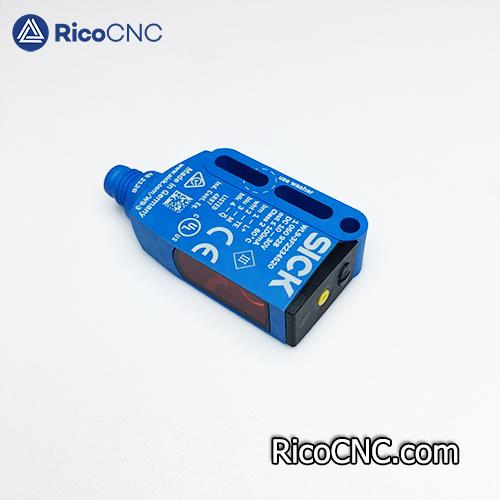

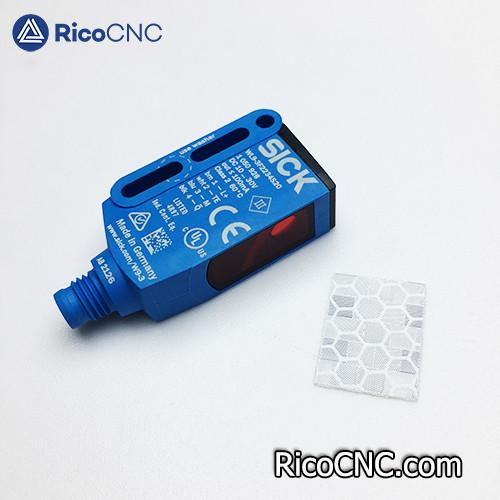

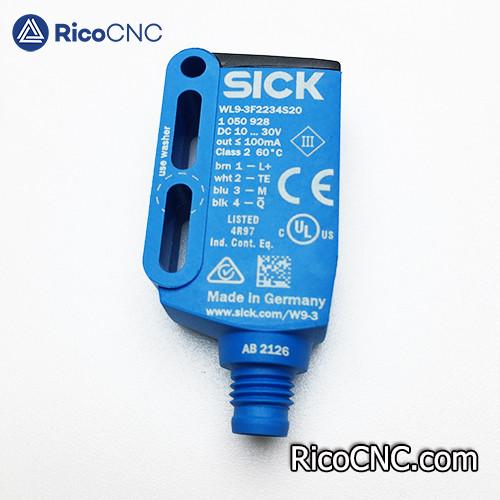

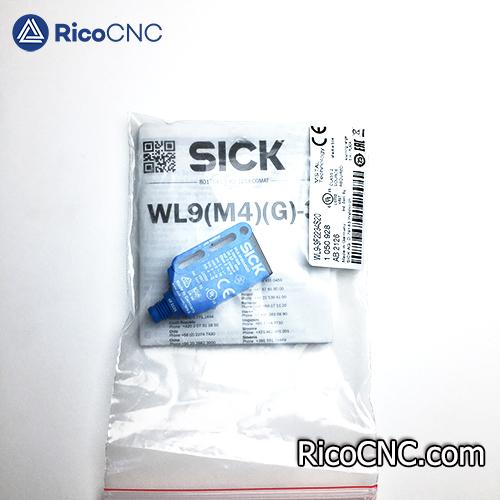

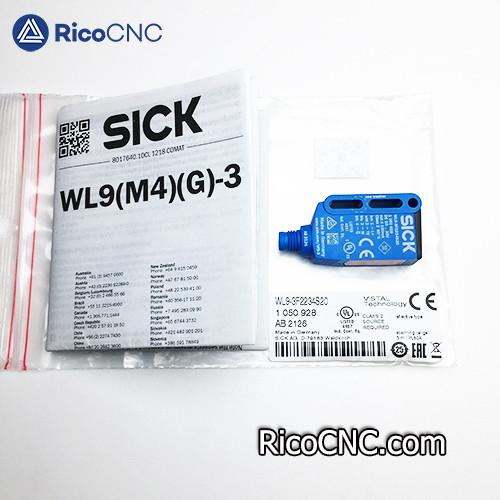

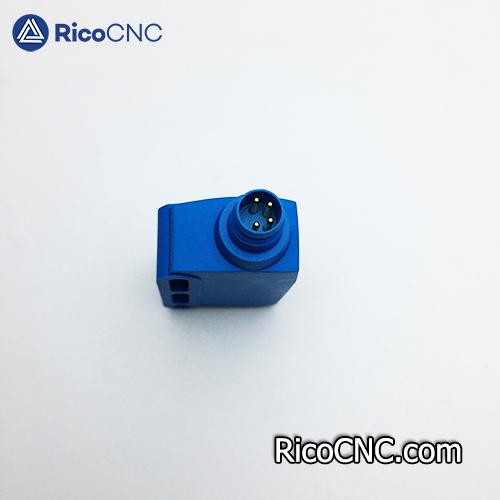

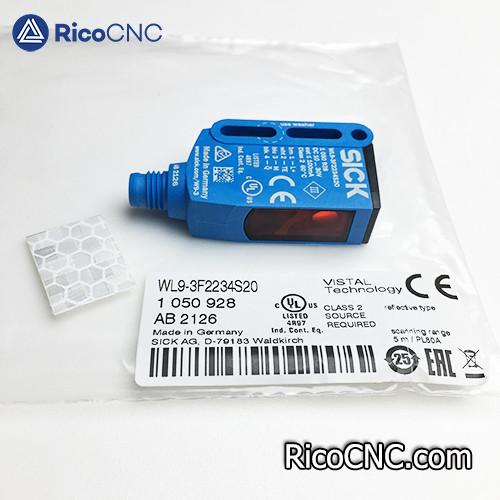

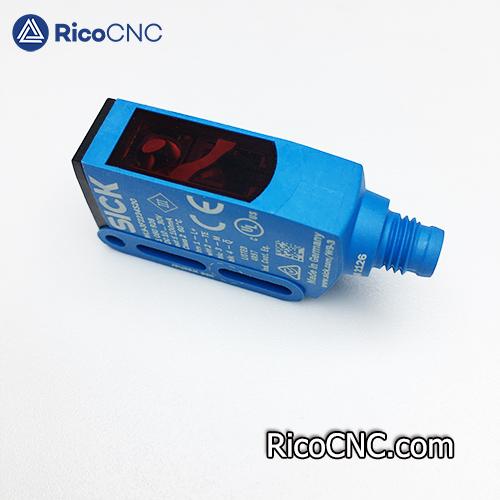

SICK 1050928 WL9-3F2234S20 Small Photoelectric Sensors for replacement Homag 4008611001
This
small sensor is the original Germany SICK WL9-3F2234S20 photoelectric sensor. The part no is 1050928. And it can replace SICK WL9-2P331S20.
This
SICK photoelectric sensor WL9-3F2234S20 can be used on Homag beam saw
PROFI HPL380/43/22. Its original part number is 4-008-61-1001, replacement for
2-007-47-1070, 4-008-61-0400.
Below is the specification of SICK WL9-3F2234S20 reflex switch:
Device type | Photoelectric sensors |
Sensor/ detection principle | Photoelectric retro-reflective sensor, autocollimation |
Dimensions (W x H x D) | 12.2 mm x 49.8 mm x 23.6 mm |
Housing design (light emission) | Rectangular |
Mounting hole | M3 |
Sensing range max. | 0 m ... 5 m 1) |
Sensing range | 0 m ... 3 m 1) |
Type of light | Visible red light |
Light source | PinPoint LED 2) |
Light spot size (distance) | Ø 45 mm (1.5 m) |
Wave length | 650 nm |
Adjustment | Single teach-in button Cable |
Special features | Inclusive DG-Folie 15 x 20 mm External teach |
• 1) Reflector PL80A.
• 2) Average service life: 100,000 h at TU = +25 °C.
RicoCNC can offer a range of Homag beam saw accessories including electronic components, air floation table valves, dust proof strips, pressure beam rubber pressure strip, etc. Welcome to contact us for more information!
