Thru-hole boring bits for wood
Wood boring drill bits
Through-Hole boring bit
Drill through bore holes for dowels, pins and screws
Carbide tipped bore bit for wood

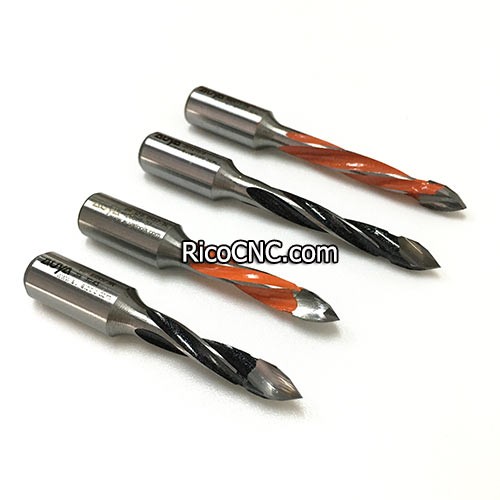

Carbide tipped through-hole (v point) boring bits
Through feed boring bits for drilling holes

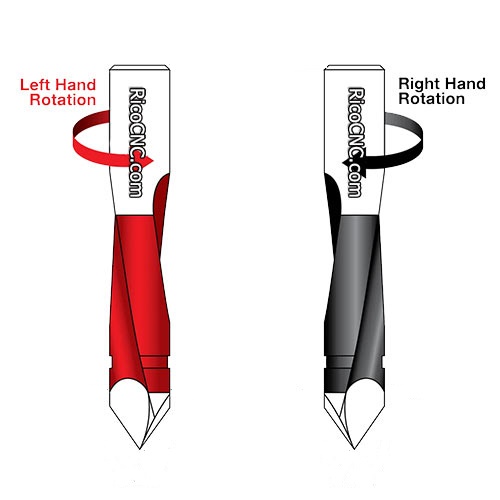

Left and Right Hand Carbide Tip V-Point Wood Drilling and Boring Bits
These carbide tipped through hole boring bits are designed to drill completely through the wood and produce clean dowel holes while eliminating break out.
The left and right hand Thru-point boring bits are used for drilling thru-holes in drill all composition materials, solid surface materials, plywoods, hardwoods, softwoods, solid wood, wood composites, or plastic laminated materials.
Here are sizes of left hand right hand through hole bore bits, and there are 57mm and 70mm long for choose:
Item No. | Direction | Drill Dia. (mm) | Blade Length (mm) | Overall Length (mm) | Shank Dia. (mm) |
3*57L | Left Hand | 3 | 21.5 | 57.5 | 10 |
3*57R | Right Hand | 3 | 21.5 | 57.5 | 10 |
4*57L | Left Hand | 4 | 28.5 | 57.5 | 10 |
4*57R | Right Hand | 4 | 28.5 | 57.5 | 10 |
5*57L | Left Hand | 5 | 28.5 | 57.5 | 10 |
5*57R | Right Hand | 5 | 28.5 | 57.5 | 10 |
6*57L | Left Hand | 6 | 28.5 | 57.5 | 10 |
6*57R | Right Hand | 6 | 28.5 | 57.5 | 10 |
7*57L | Left Hand | 7 | 28.5 | 57.5 | 10 |
7*57R | Right Hand | 7 | 28.5 | 57.5 | 10 |
8*57L | Left Hand | 8 | 28.5 | 57.5 | 10 |
8*57R | Right Hand | 8 | 28.5 | 57.5 | 10 |
9*57L | Left Hand | 9 | 28.5 | 57.5 | 10 |
9*57R | Right Hand | 9 | 28.5 | 57.5 | 10 |
10*57L | Left Hand | 10 | 28.5 | 57.5 | 10 |
10*57R | Right Hand | 10 | 28.5 | 57.5 | 10 |
11*57L | Left Hand | 11 | 28.5 | 57.5 | 10 |
11*57R | Right Hand | 11 | 28.5 | 57.5 | 10 |
12*57L | Left Hand | 12 | 28.5 | 57.5 | 10 |
12*57R | Right Hand | 12 | 28.5 | 57.5 | 10 |
13*57L | Left Hand | 13 | 28.5 | 57.5 | 10 |
13*57R | Right Hand | 13 | 28.5 | 57.5 | 10 |
14*57L | Left Hand | 14 | 28.5 | 57.5 | 10 |
14*57R | Right Hand | 14 | 28.5 | 57.5 | 10 |
