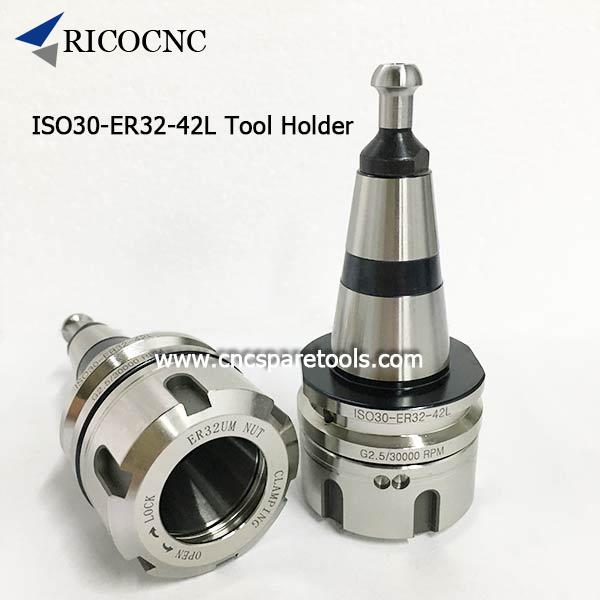

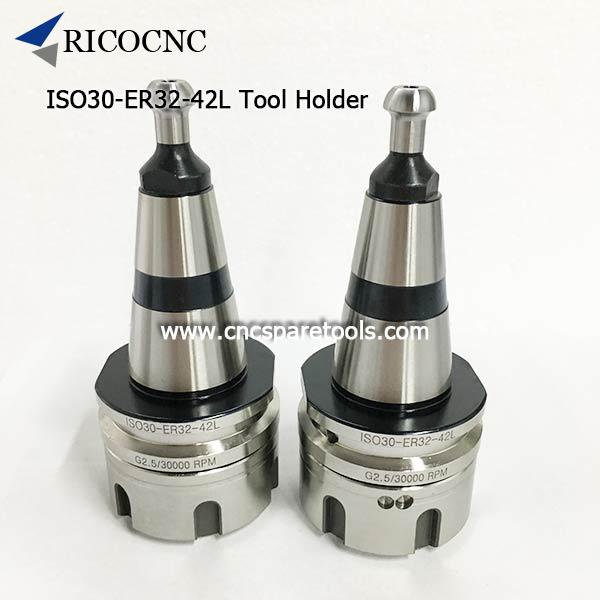

ISO30-ER32-42L Tool Holders for HSD ATC Spindle

Model: ISO30-ER32-42L
Tool Fork Model: ISO30
Brand: RICOCNC

EMAIL

product description

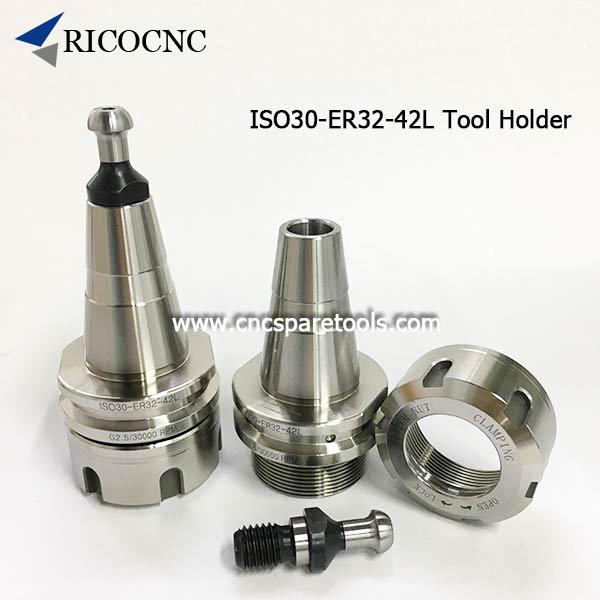

CNC Tool Holders for HSD ISO30 ATC Spindle with Covernut and Pull Stud

This is a balanced ISO 30 tool holder (cone) that is used for ISO 30 taper systems. It is woodworking tool holders for wood working auto tool changer CNC routers. All HSD ISO 30 ATC spindles use this cone. The HSD Auto Tool Changer clamping system uses the pull stud at the end to pull the cone precisely into the spindle's taper.

ISO30 ER32 Toolholder, A=42mm. Commonly known as ISO30 for many HSD and Biesse equipped CNC routers. Balanced to 24,000 rpm <=G2.5, ISO30 toolholder includes HSD pull stud and ER32 collet nut.

ISO30 CNC Tool holders Features:
Toolholder taper: ISO30
Collet Chuck accepts all ER32 collets
Works on all machines that take ISO30 tooling
All critical surfaces precision ground
Tool cones come with predrilled balancing holes
Made from alloy steel hardened to 54 - 56HRC
Balanced to 24,000 rpm
T.I.R.: 0.005mm
Rear thread for pull stud for HSD ATC spindle
Gage length is 42mm, 60mm optional
Tool holder fork model: ISO 30
Tool holder model: ISO30-ER32-42
Application: ATC cnc center /cnc router/cnc woodworking engraving machine

Nut and Pull Stud is Included
Collets Not Included-Click Here for Collet Selections

Also we can supply you ISO15, ISO20-ER16/20, ISO40, HSK63F, NBT30, BT30, BT40 tool holders.
Welcome your inquiries.

iso30 tool holders.jpg

iso30 er32 tool holder.jpg


FAQ

· How to buy?

1, Contact with us ---

2, Decide the order ---

3, Make payment by (Paypal, Payoneer, Western Union, MoneyGram, T/T bank transfer) ---

4, Delivery the goods with Fedex, DHL, TNT, UPS, EMS

· When can i get the items after payment?

Leadtime within 1-3 workdays. And it takes about 3-5 workdays for delivery from China to your place.
