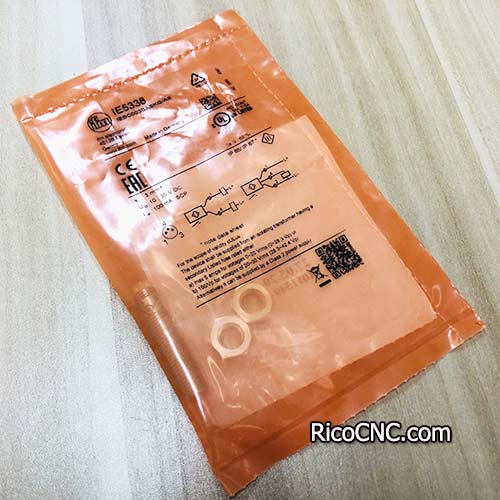

IFM IE5338 Inductive Proximity Sensor 4-008-61-0712 for Homag Edge Banding Machine

IFM IE5338 Inductive Proximity Sensor 4-008-61-0712 for Homag Edge Banding Machine

Model: IFM IE5338

Homag part number: 4-008-61-0712 / 4008610712

SENSOR INDUKTIV M8X1 L=29/40 SN=3 NO

Produkt ID: 4008610712

-Dimensions [mm]: M8 x 1 / L = 40

Body Style: Cylindrical

Connection Type: M8 3-Pin

Housing Material: Brass

IP Rating: IP65 ; IP67

Maximum Operating Temperature: 60 C

Measurement Range: 3 mm

Minimum Operating Temperature: 0 C

Mounting Style: Flush Shielded

Mounting Type: M8 x 1 Threaded

Output: NPN/PNP-NO

Primary Type: Inductive Proximity Sensors

Series: IE53 Series

Supply Voltage: 10-30 VDC

Switching Current: 100 mA

Switching Frequency: 0.8 kHz

Termination: 3-wire

RicoCNC supplys all kinds of woodworking spare tools, like Biesse machine parts, Homag machine parts, SCM machine parts, CNC woodworking tools, edgebander machine parts, and CNC panel beam saw parts.

Welcome to contact us if any needs or inquiries.

· How to buy?

1, Contact with us ---

2, Decide the order ---

3, Make payment by (Paypal, Payoneer, Western Union, MoneyGram, T/T bank transfer) ---

4, Delivery the goods with Fedex, DHL, TNT, UPS, EMS

· When can i get the items after payment?

Leadtime within 1-3 workdays. And it takes about 3-5 workdays for delivery from China to your place.
