Homag Weeke 4011110388 VCBL-K1 120x50 H=50 Q Schmalz 10.01.12.00770 Suction Cup

Homag Weeke 4011110388 VCBL-K1 120x50 H=50 Q Schmalz 10.01.12.00770 Suction Cup

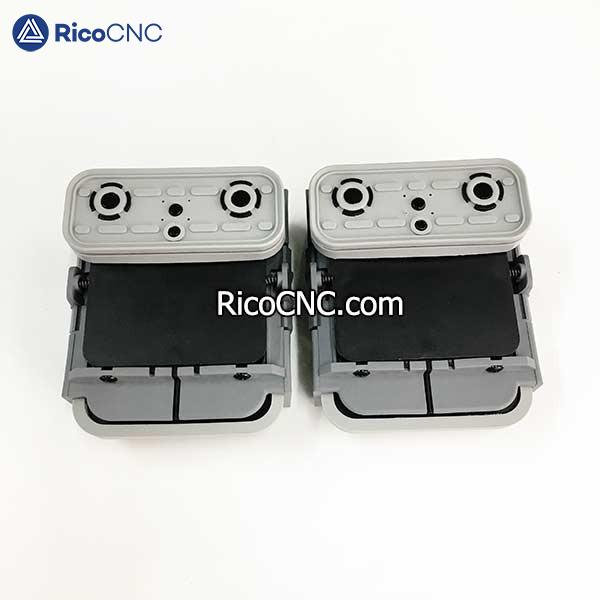

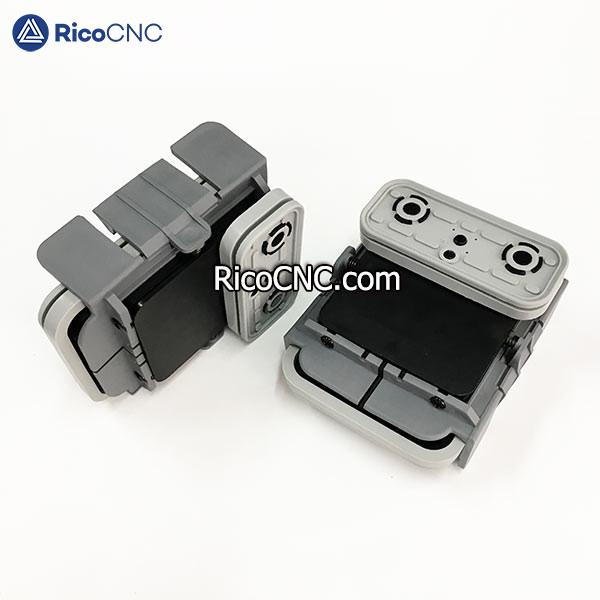

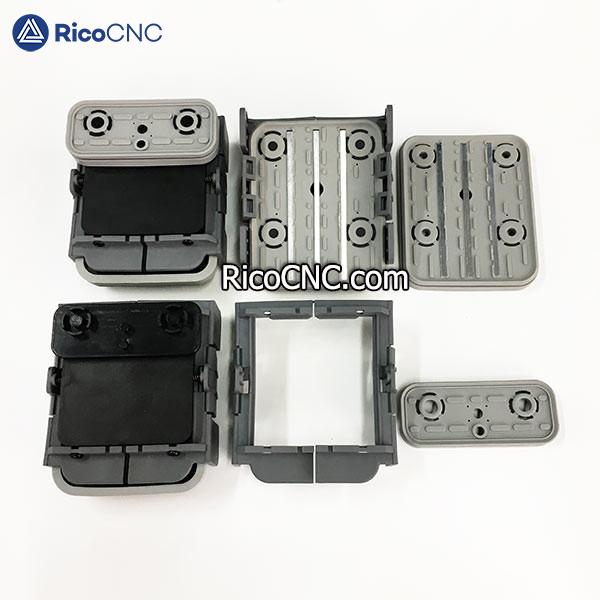

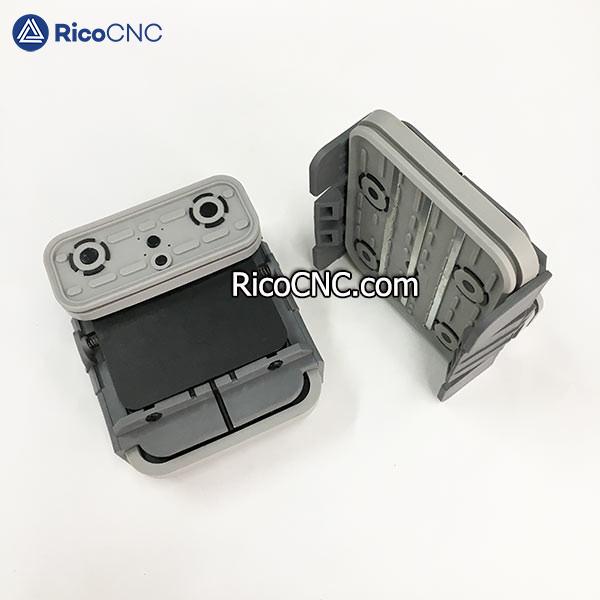

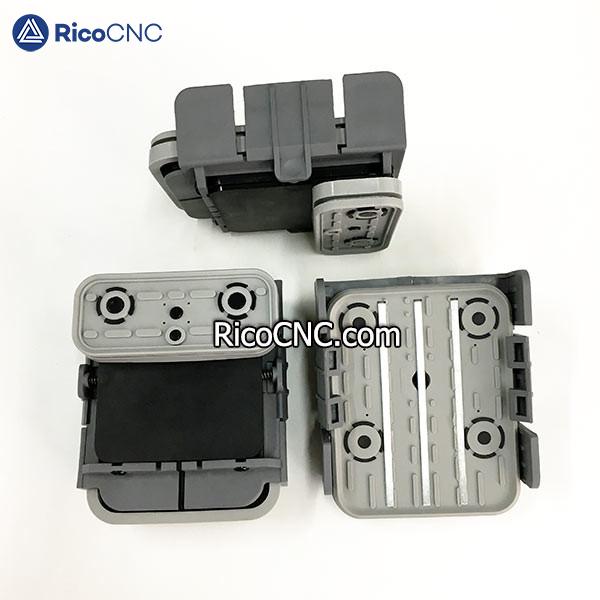

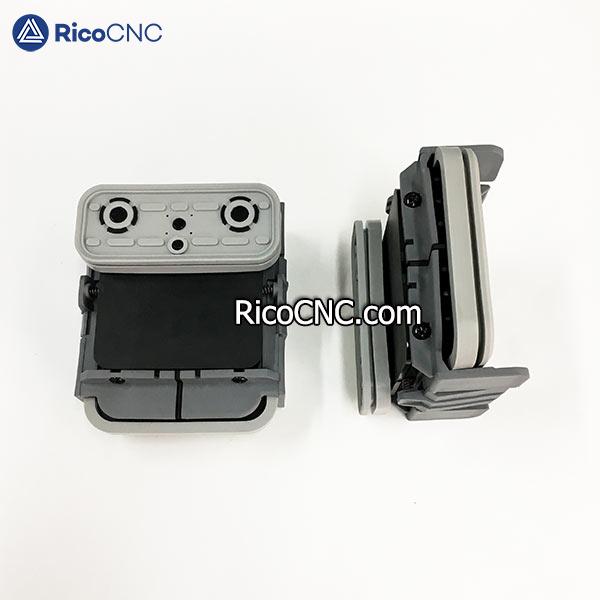

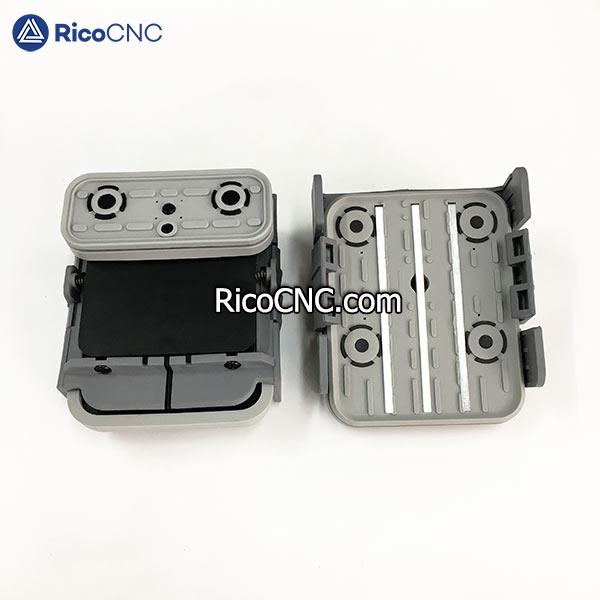

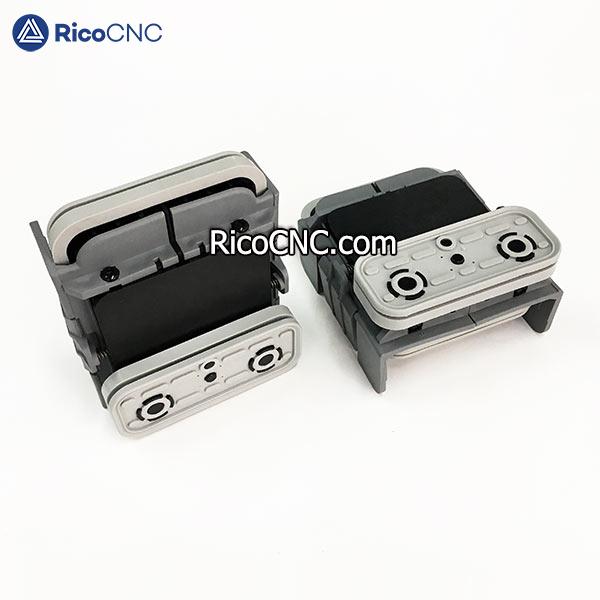

This vacuum pod is a height of 50mm Schmalz 1-circuit consoles vacuum block. Schmalz article numer is 10.01.12.00770

VCBL-K1 120x50x50 Q is the crossways vacuum pod for narrow parts clamping, used with Weeke/Homag and other PTP CNC machine centre with pod and rail table, replacement for Homag 4-011-11-0388

Schmalz10.01.12.00770 vacuum block features:
Model: VCBL-K1 120x50x50 Q
Suction cup for 1-circuit console Schmalz
Top dimensions (LxW): 120 x 50 mm
Base suction cup: 140x115mm
Height H: 50 mm
Arrangement: acrossway

Homag part number: 4011110388

VCBL-K1 120x50x50 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum cups work with Homag, Weeke, CMS, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Format 4, Anderson and many others console table. Woodworking pod and rail vacuum block support for fixing workpieces to the console table for workpiece clamping.

The 10.01.12.00770 suction cup comes with a complete entire set.
Also, the upper replacement gasket  10.01.12.00012 and bottom gasket 10.01.12.00228 are available.

A range of replacement vacuum block and suction plates for Homag, Weeke, Biesse, SCM and other brands woodworking machines for sale here. RicoCNC is a reliable source for CNC & Woodworking machine spare parts, welcome to contact us.
