Homag 4035012648 4-035-01-2648 AVENTICS 0822332402 Mini Cylinder

Homag 4035012648 4-035-01-2648 AVENTICS 0822332402 Mini Cylinder

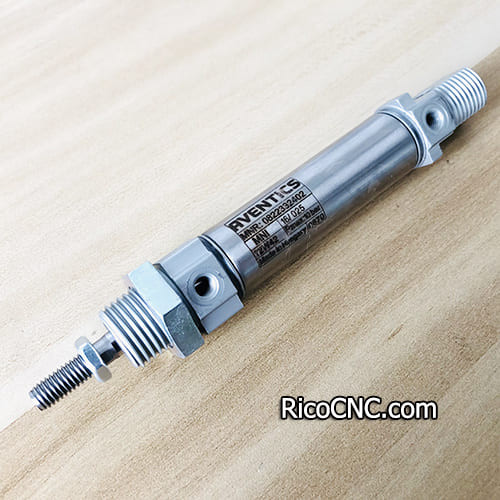

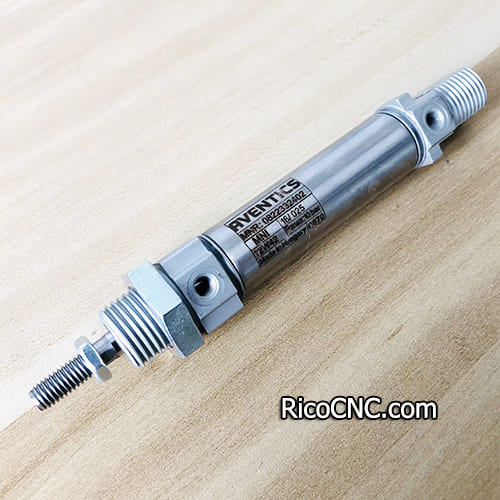

This is AVENTICS 0822332402 mini cylinder, Series MNI (MNI-DA-16-0025-U-31-01-4-00-000-00), ISO 6432 MINI D=16 HUB 25 M5.It can be used on Homag woodworking machine. Homag part number is 4035012648 or 4-035-01-2648.

Specification of Homag 4035012648 cylinder

Manufacturer:  AVENTICS

Model: 0822332402

Homag part number:

Ambient Temperature Max (DegC): 120

Ambient Temperature Min (DegC): -10

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1

Pneumatic port: M5

Stroke (mm): 25

Acting principle: Double Acting

Piston diameter: 16 mm

Piston rod thread: M6

We carry a range of edge bander parts, such as edge bander track pads, pressure wheels, edge bander glue pots, cloth buffing wheels, shock absorbers, trimming motors, pre-milling motors,polishing motors, edge bander pre-milling cutters, air cylinders, solenoid valve, infeed roller, edge trimming cutter, etc.
