Homag 4035011919 4-035-01-1919 AVENTICS 0822010557 Cylinder

Homag 4035011919 4-035-01-1919 AVENTICS 0822010557 Cylinder

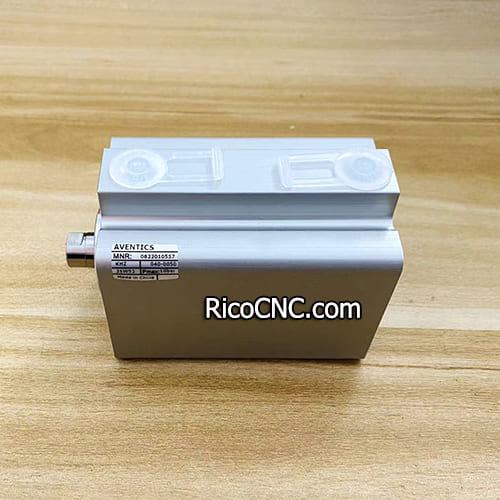

This is AVENTICS 0822010557 Short-stroke cylinder, Series KHZ (KHZ-DA-040-0050-O)

It can be used on Homag woodworking machine. Homag part number is 4035011919 or 4-035-01-1919

Specifications of Specifications of Homag 4035011919 cylinder:

Manufacturer: AVENTICS

Part number:  0822010557

Homag part number: 4035011919 4-035-01-1919

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 0.6

Pneumatic port: G 1/8

Stroke (mm): 50

Acting principle: Double Acting

Piston diameter: 40 mm

Piston rod thread: M6

RicoCNC provides an extensive selection of spare parts for Homag Holzma beam saws, including air flotation table valve, air flotation table, beam saw curtain safety flap, foam tape 4699950759, and other beam saw accessories.
