Homag 4035010019 4-035-01-0019 AVENTICS 0822121006 Profile For Beam Saw

Homag 4035010019 4-035-01-0019 AVENTICS 0822121006 Profile For Beam Saw

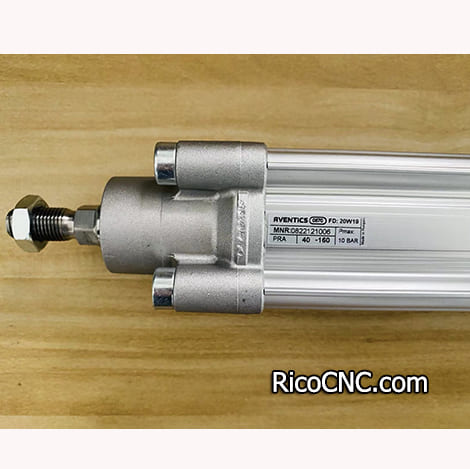

This is AVENTICS 0822121006 profile cylinder, ISO 15552, PRA series (PRA-DA-040-0160-0-2-2-1-1-1-BAS). It is pneumatic piston rod cylinder, double acting, 40mm Bore, 160mm Stroke.This AVENTICS cylinder can be used on Homag beam saw machine. Homag part number is 4035010019 or 4-035-01-0019.

Specification of Homag 4-035-01-0019 pneumatics cylinder:

Brand: AVENTICS

Model: 0822121006

Homag part number: 4035010019, 4-035-01-0019

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -20

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1.5

Pneumatic port: G 1/4

Stroke (mm): 160

Acting principle: Double Acting

Piston diameter: 40 mm

Piston rod thread: 25 M12x1

RicoCNC provides an extensive selection of spare parts for Homag Holzma beam saws, including air flotation table valve, air flotation table, beam saw curtain safety flap, foam tape 4699950759, and other beam saw accessories.
