Homag 4035010017 4-035-01-0017 Aventics 0822121003 Pneumatic Cylinder

Homag 4035010017 4-035-01-0017 Aventics 0822121003 Pneumatic Cylinder

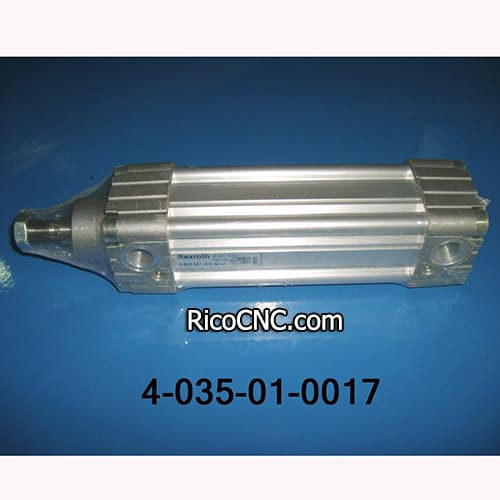

This is AVENTICS 0822121003 profile cylinder ISO 15552, PRA series (PRA-DA-040-0080-0-2-2-1-1-1-BAS), D=40 HUB= 80 G1/4. It can be used on Homag edgebanding machine. Homag part number is 4035010017 or 4-035-01-0017

Specifications of Homag 4-035-01-0017 cylinder

Manufacturer:  AVENTICS

Model: 0822121003

Homag part number: 4035010017 4-035-01-0017

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -20

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1.5

Pneumatic port: G 1/4

Stroke (mm): 80

Acting principle: Double Acting

Piston diameter: 40 mm

Piston rod thread: 25 M12x1

RicoCNC supplies a wide selection of spare parts for Homag Brandt edgebanding machine, including Homag edgebander track pads, Homag pressure wheels, Homag edgebander glue pot, homag cloth buffing wheels, Homag shock absorber， Homag trimming motor, Homag pre-milling motor, Homag polishing motor, edge bander premilling cutter, air cylinder, solenoid valve, infeed roller, etc.

Welcome to your inquiry!
