Homag 3009260560 4035010479 AVENTICS 0822334509 Pneumatic Cylinder

Homag 3009260560 4035010479 AVENTICS 0822334509 Pneumatic Cylinder

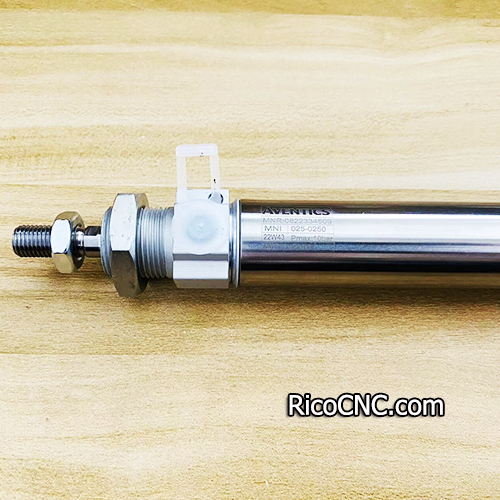

This is AVENTICS 0822334509 MNI-DA-25-0250-D-31-01-1-00-000-00. This cylinder is CYLINDER ISO 6432 MINI D=25 HUB=250 G1/8. It can be used on Homag woodworking machine. Homag part number is 3009260560 or 4035010479.

Specifications of Homag 0822334509 cylinder:

Manufacturer: AVENTICS

Part number: 0822334509

Homag part number: 3009260560, 4035010479, 3-009-26-0560, 4-035-01-0479

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -20

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1.5

Pneumatic port: G 3/8

Stroke (mm): 25

Acting principle: Double Acting

Piston diameter: 63 mm

Piston rod thread: 5M16x1

RicoCNC carries a wide range of Homag CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts.
