4035010700 4-035-01-0700 3009260501 3-009-26-0501 Cylinder for Homag Machines

4035010700 4-035-01-0700 3009260501 3-009-26-0501 Cylinder for Homag Machines

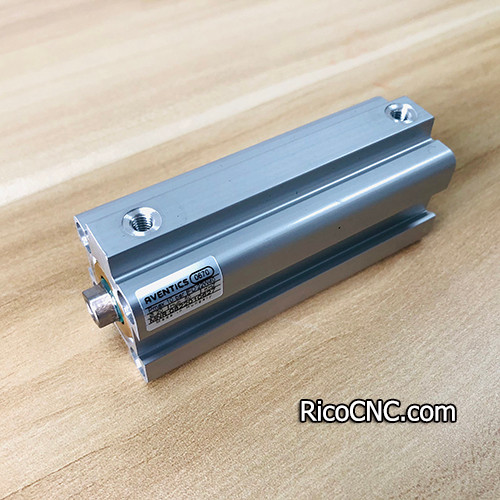

This is AVENTICS 0822010627 short-stroke cylinder, series KHZ (KHZ-DA-020-0050-M), D= 20 HUB= 50. It can be used on Homag woodworking machine. Homag part number is 4035010700/ 4-035-01-0700, 3009260501 / 3-009-26-0501.

Specifications of Homag 0822010627 cylinders:

Manufacturer:  AVENTICS

Model: 0822010627

Homag part number: 4035010700, 4-035-01-0700, 3009260501, 3-009-26-0501

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1

Pneumatic port: M5

Stroke (mm): 50

Acting principle: Double Acting

Piston diameter: 20 mm

Piston rod thread: M5

 RicoCNC can offer a range of spare parts for Homag machines, including Homag CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts.

If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
