4011110367 VCBL-K1 140x115x50 Vacuum Pods 10.01.12.00210 for PTP CNC

• VCBL-K1 140x115x50 vacuum block
• Dimensions (L x W): 140 x 115 mm Height: 50mm
• 4011110367 Homag vacuum Block
• 4-011-11-0367 homag suction cup
• 10.01.12.00210 Schmalz vacuum pod
• Vacuum pod 115X140X50MM K1 SCHMALZ
• Vacuum Cups for Homag Venture 106
• Suction cup for Schmalz 1-circuit console

EMAIL

product description


4011110367 VCBL-K1 140x115x50 Vacuum Pods 10.01.12.00210 for PTP CNC

This vacuum block is Homag VCBL-K1 140x115x50 vacuum pods. Homag original part number is 4011110367 (4-011-11-0367). It is 50mm height single circuit consoles vacuum suction cup, Schmalz article No. 10.01.12.00210, widely used with Weeke/Homag and other PTP CNC machine center with pod and rail table, such as Homag Venture 106.

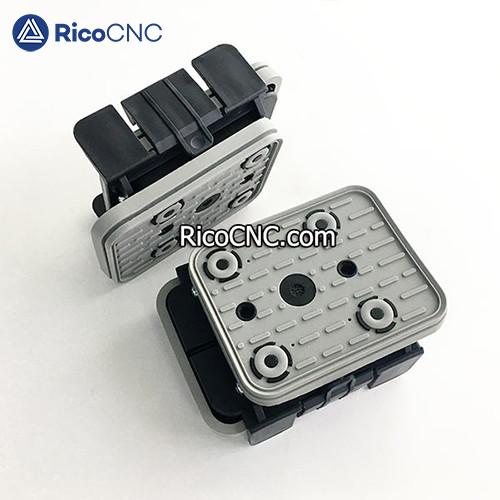

140x115 vauum block.jpg

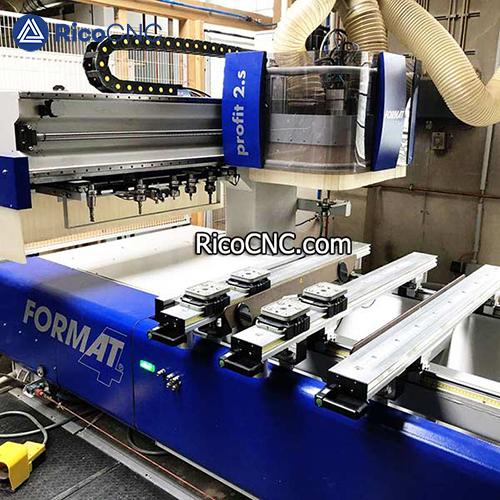

VCBL-K1 140x115x50 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum suction cups work with Homag, Weeke, IMA, Masterwood, Felder, Holz-Her, Reichenbacher, Busellato, Format 4, Weeke Optimat BHC Venture 08M and many others console table. Woodworking pod and rail vacuum pods support for fixing workpieces to the console table for workpiece clamping.

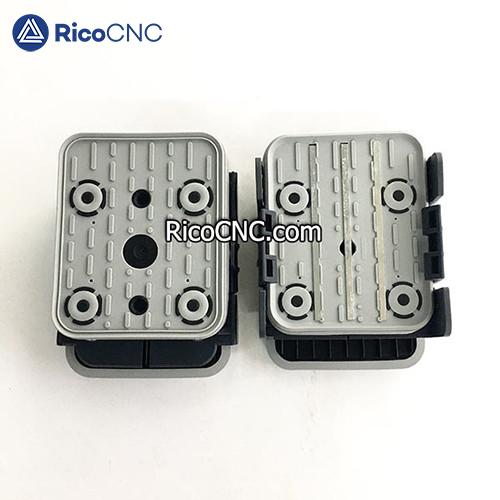

VCBL-K1 140x115x50 vacuum block.jpg

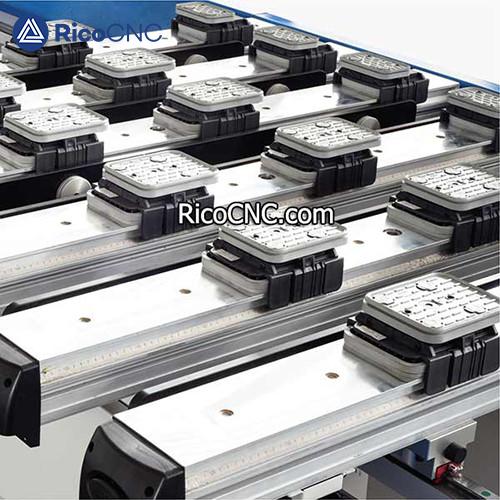

Vacuum blocks pre-mounted on consoles with mechanical clamps to prevent workpieces from shifting.

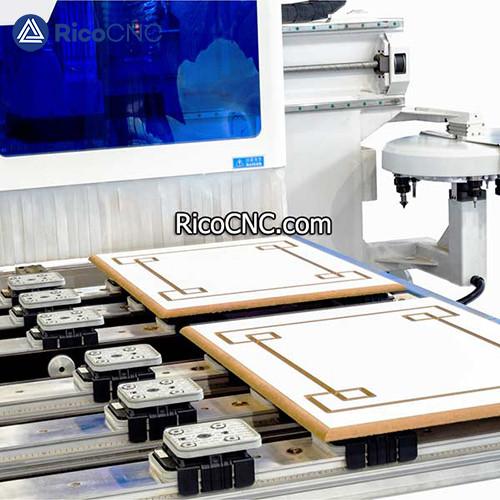

Both the blocks and the workpieces are clamped securely and precisely by means of vacuum
.

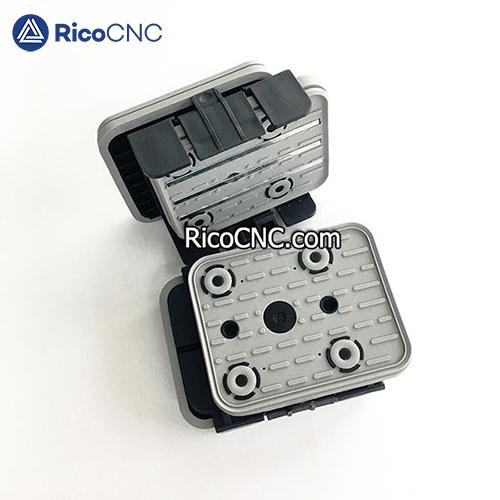

Homag Weeke vacuum block.jpg

Homag 4-011-11-0367 suction cup size:
Dimensions (LxW): 140 x 115 mm
Height H: 50 mm


Schmalz 10.01.12.00210 suction cup is the standard equipment in CNC Homag, Weeke, IMA, Masterwood, Felder, Holz-Her, Reichenbacher.
SCM / Morbidelli part No.: 2990340005e
HolzHer: 2760207
Schmalz: 10.01.12.00210

Homag CNC vacuum cup comes with a complete entire set. Removable upper and lower rubber sucker.

Also, the upper rubber suction surface 4-011-11-0077, 10.01.12.00488 and bottom vacuum pads 10.01.12.00228 are available as replacements.

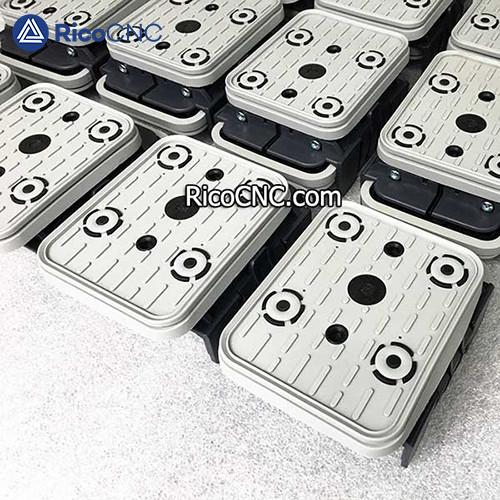

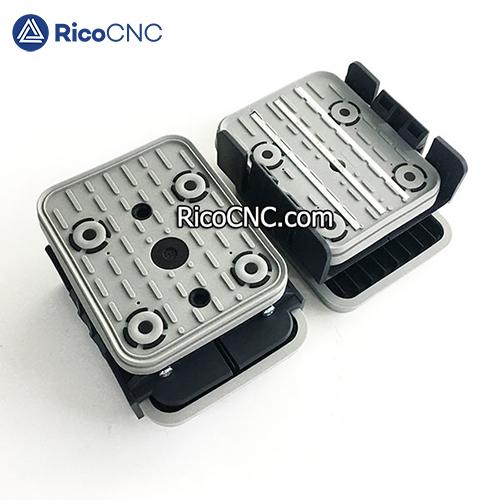

SCHMALZ 10.01.12.00210 suction cup.jpg

A range of replacement vacuum cups and rubber pads for Homag, Weeke, Biesse, SCM woodworking machines for sale here, welcome to contact us.

Vacuum Cups for Homag Venture.jpg
